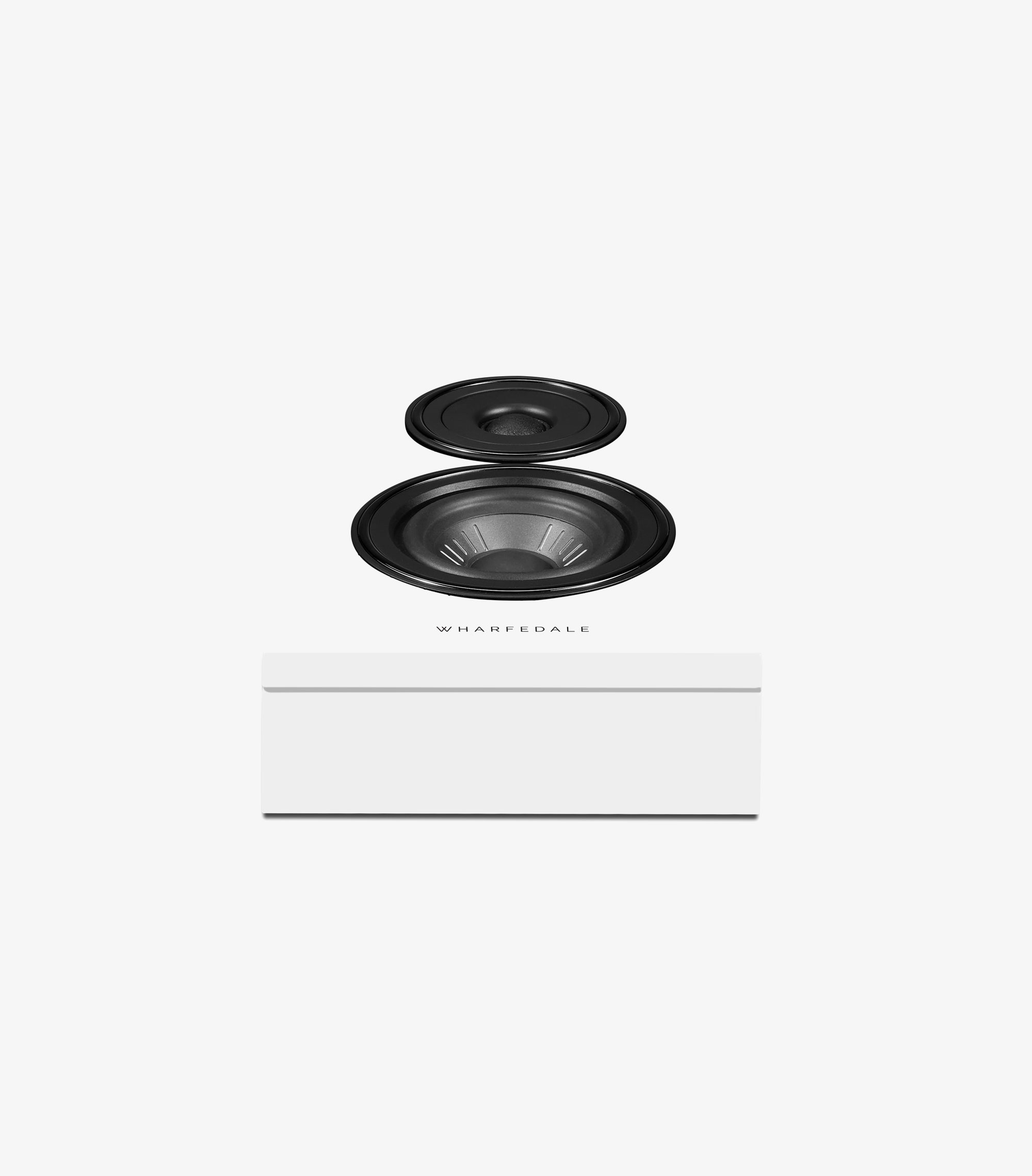

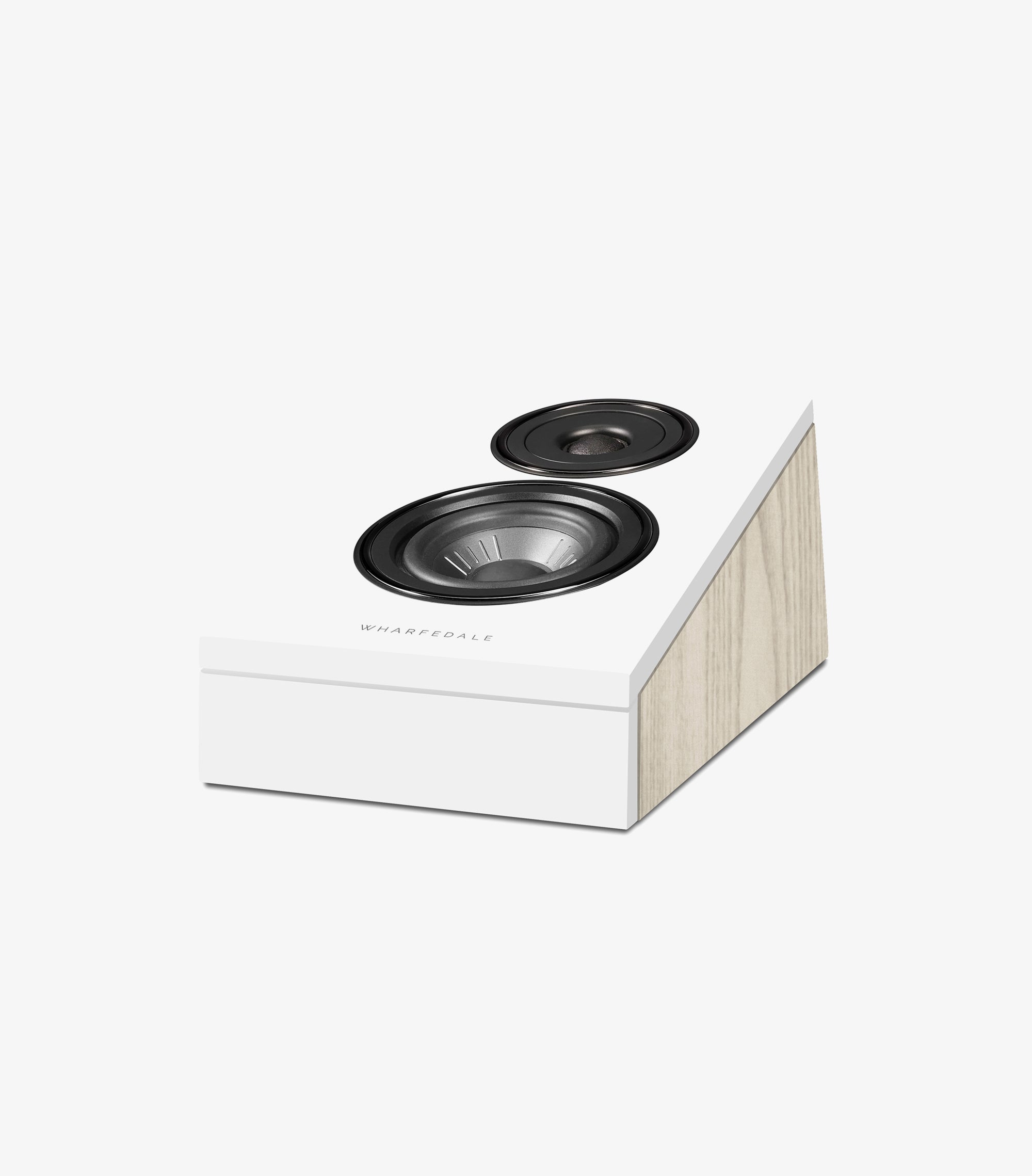

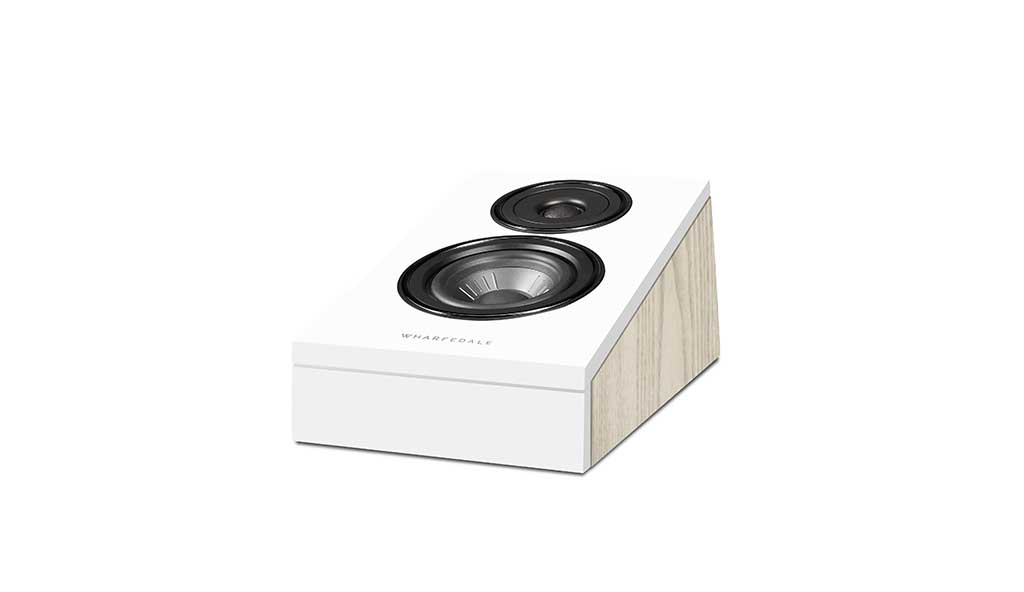

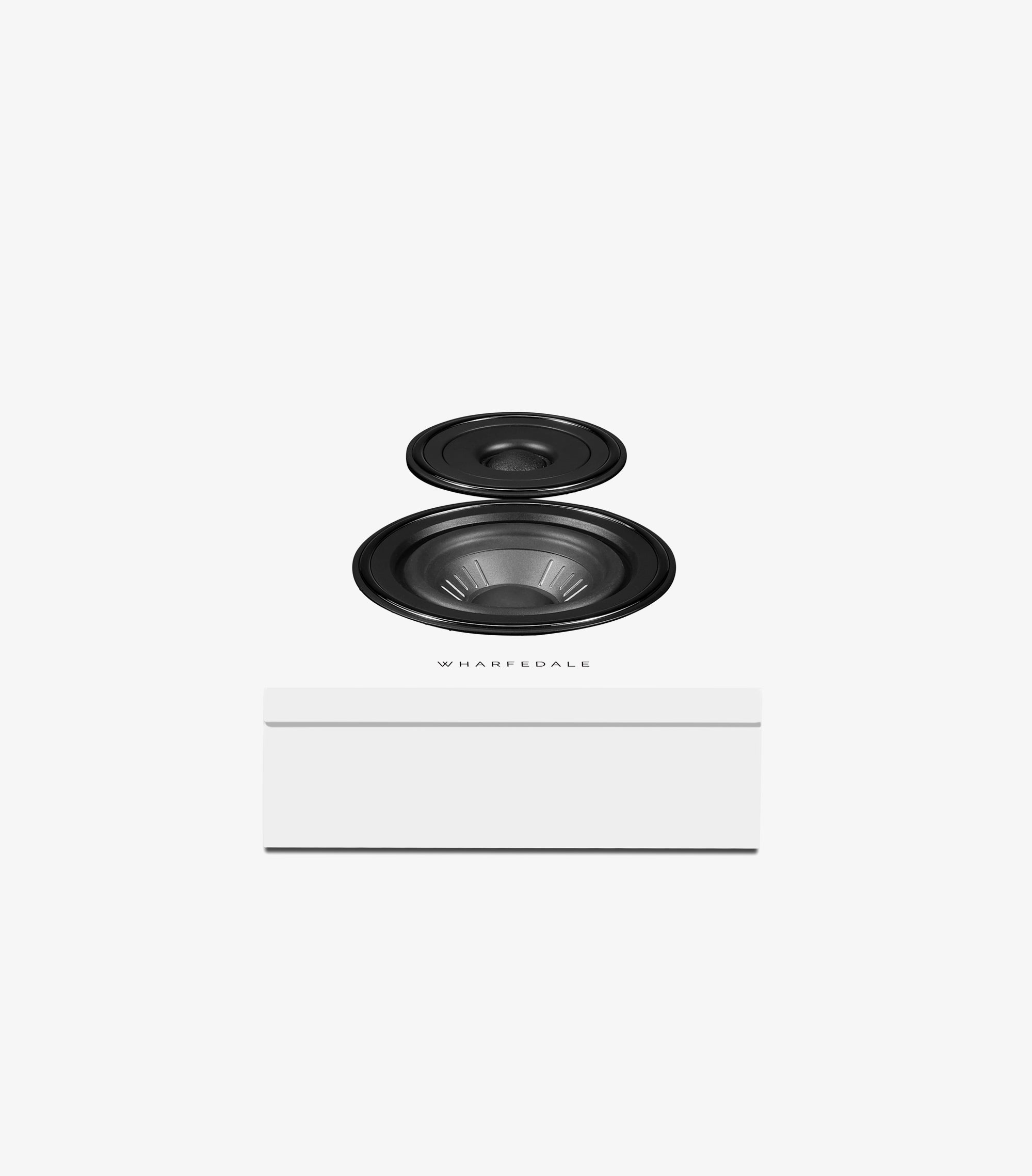

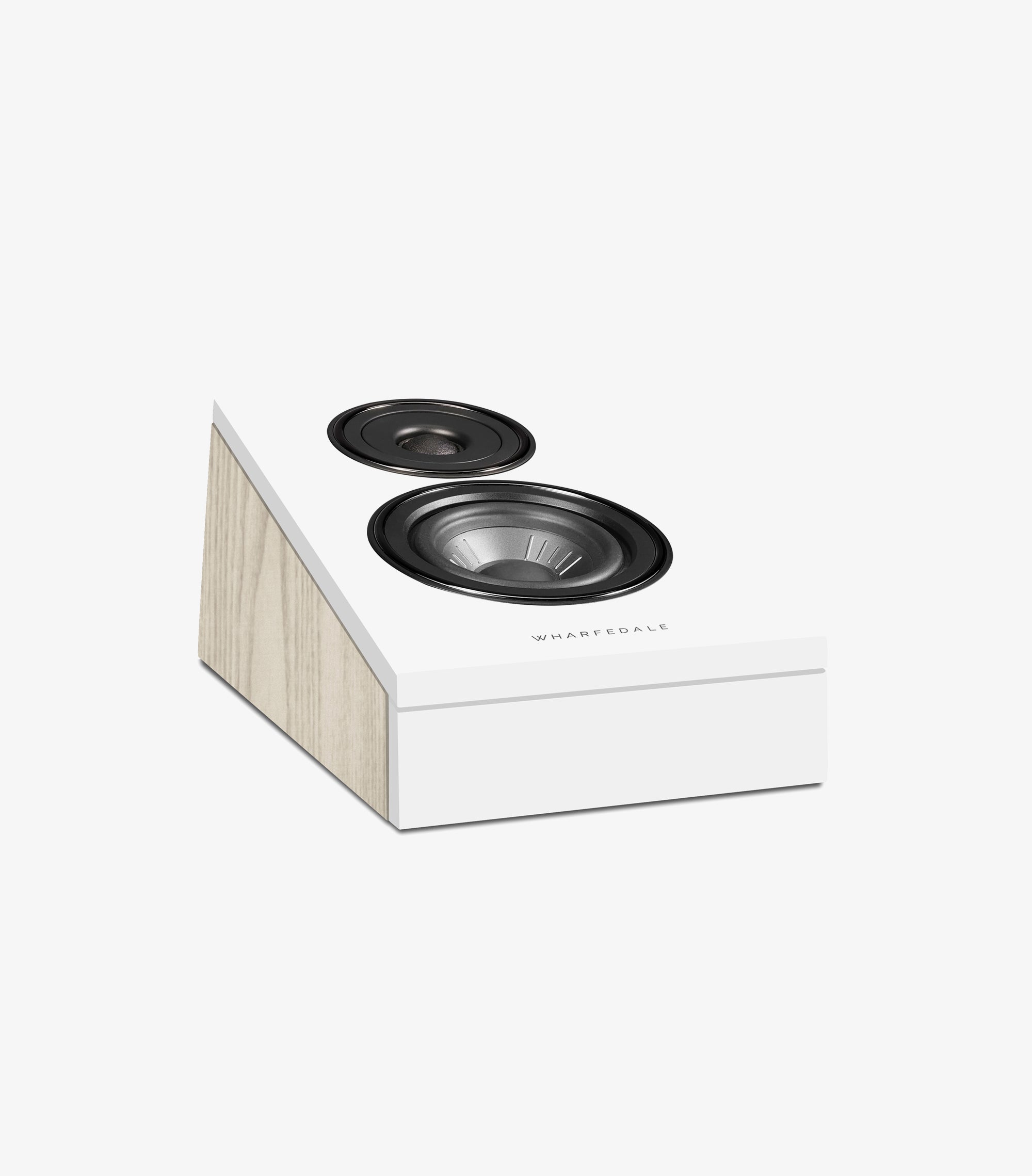

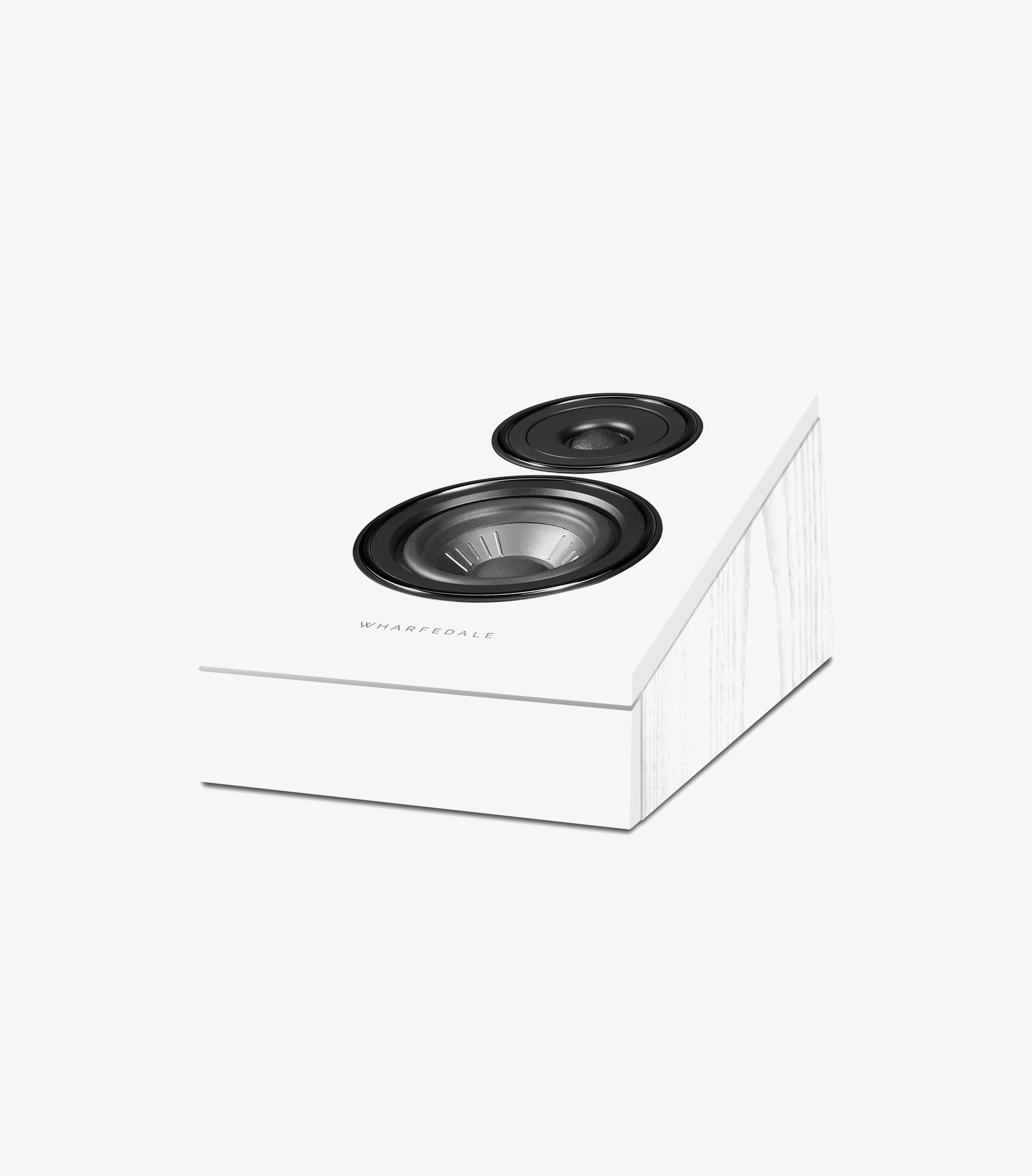

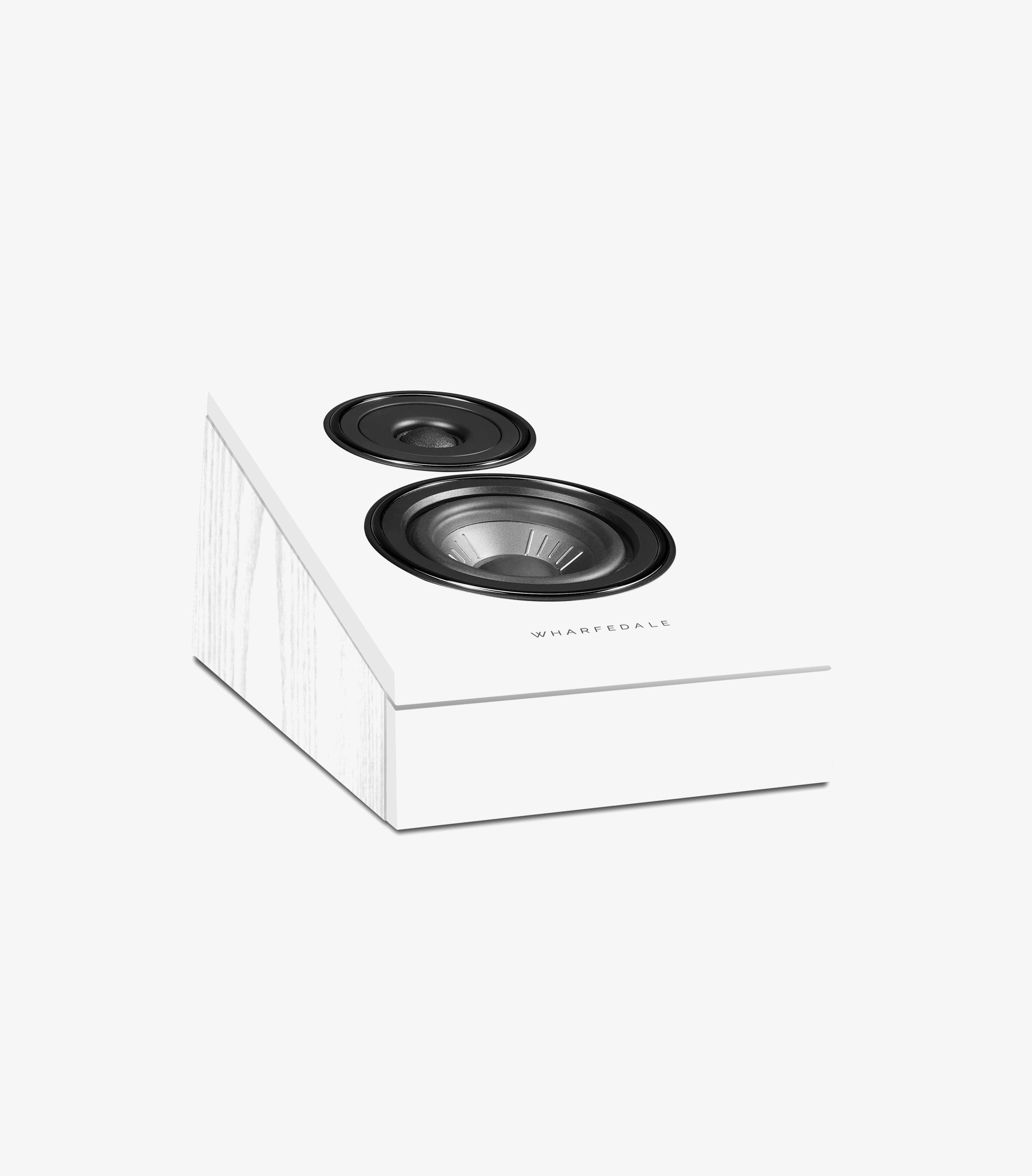

Diamond 12.3D Surround Speakers in white

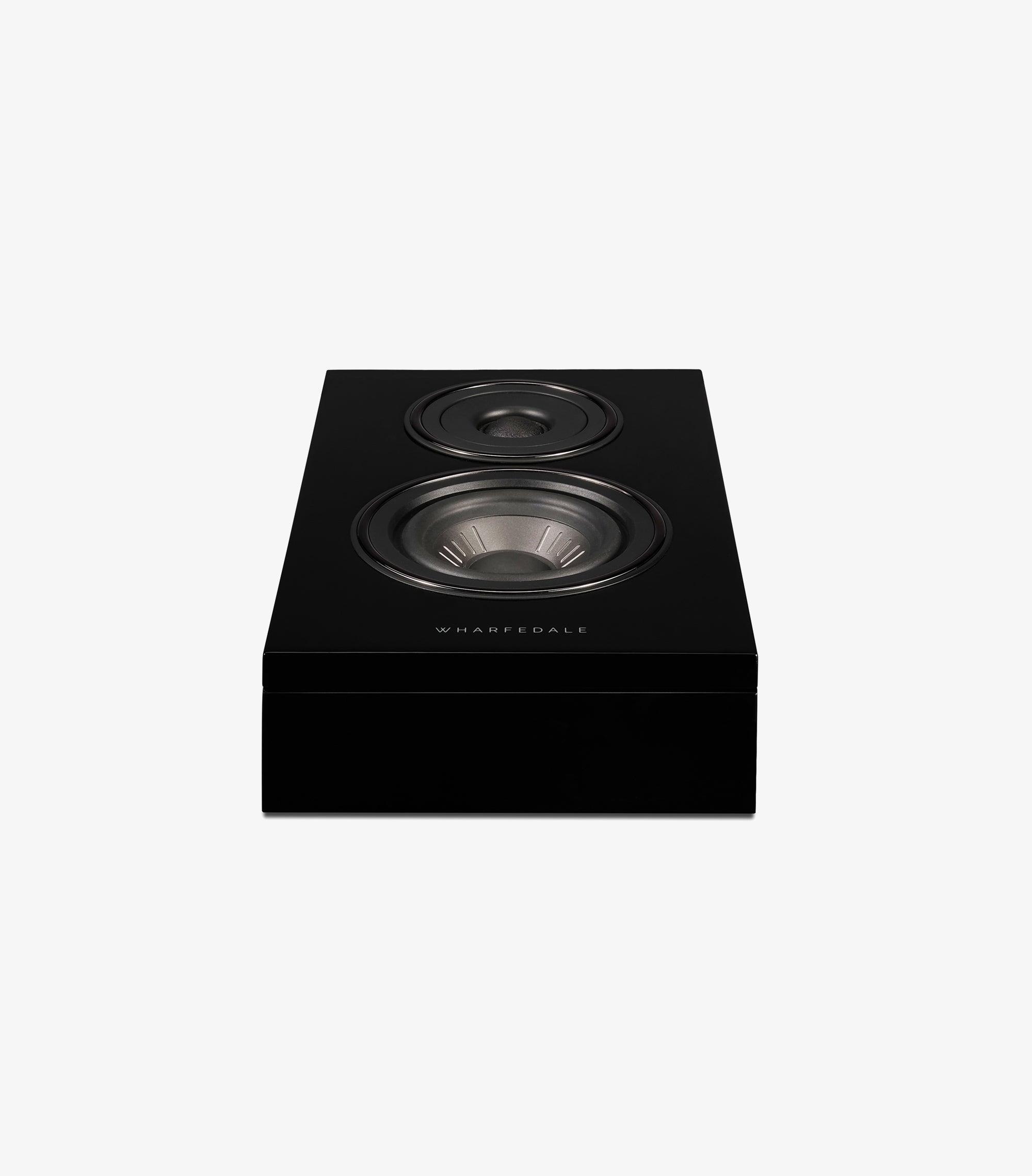

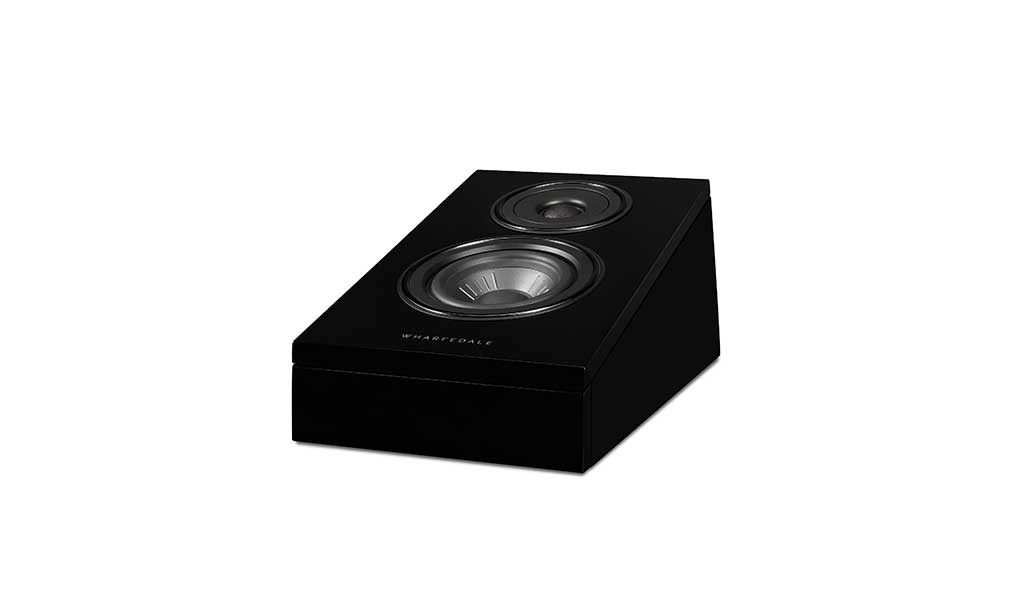

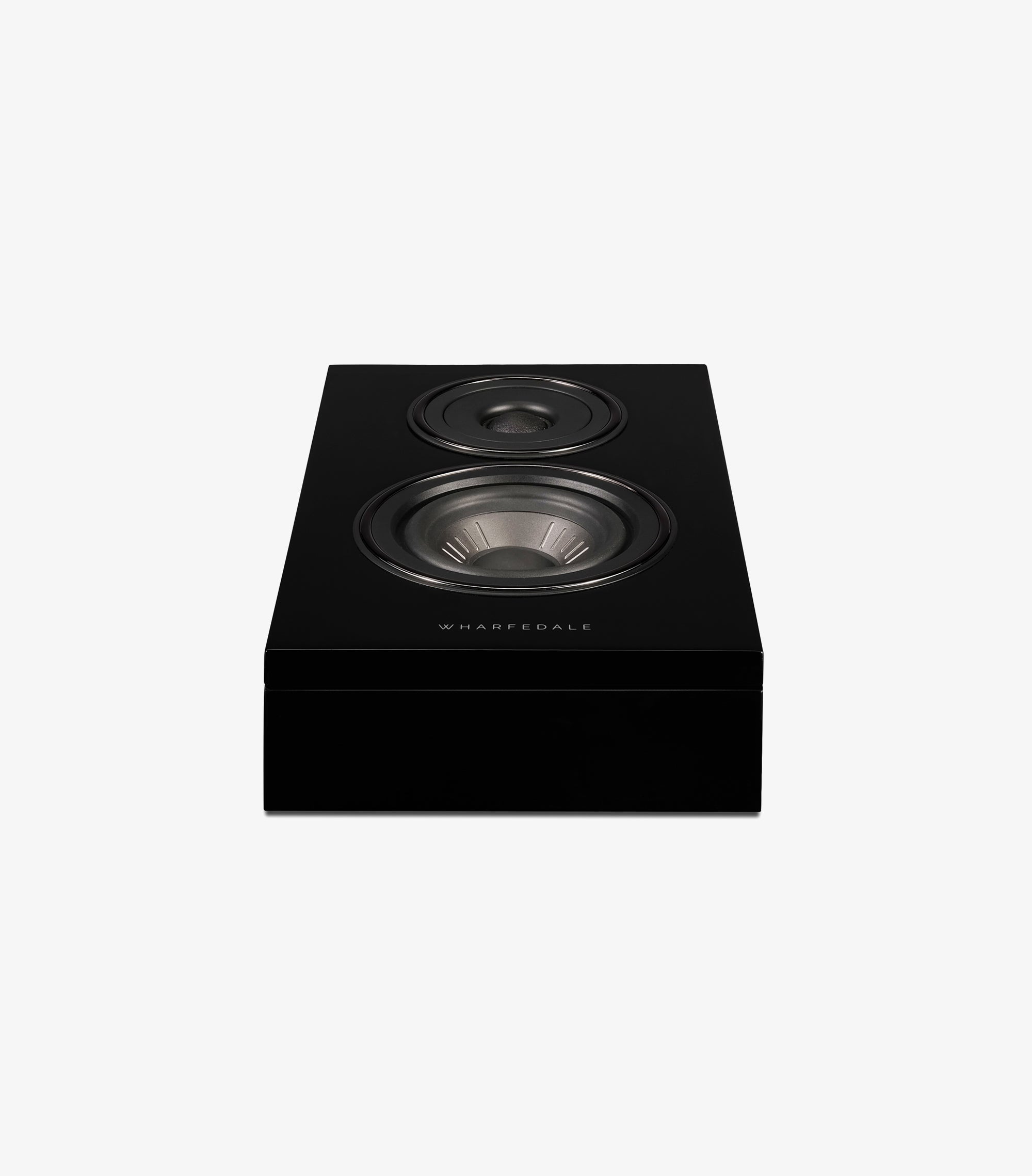

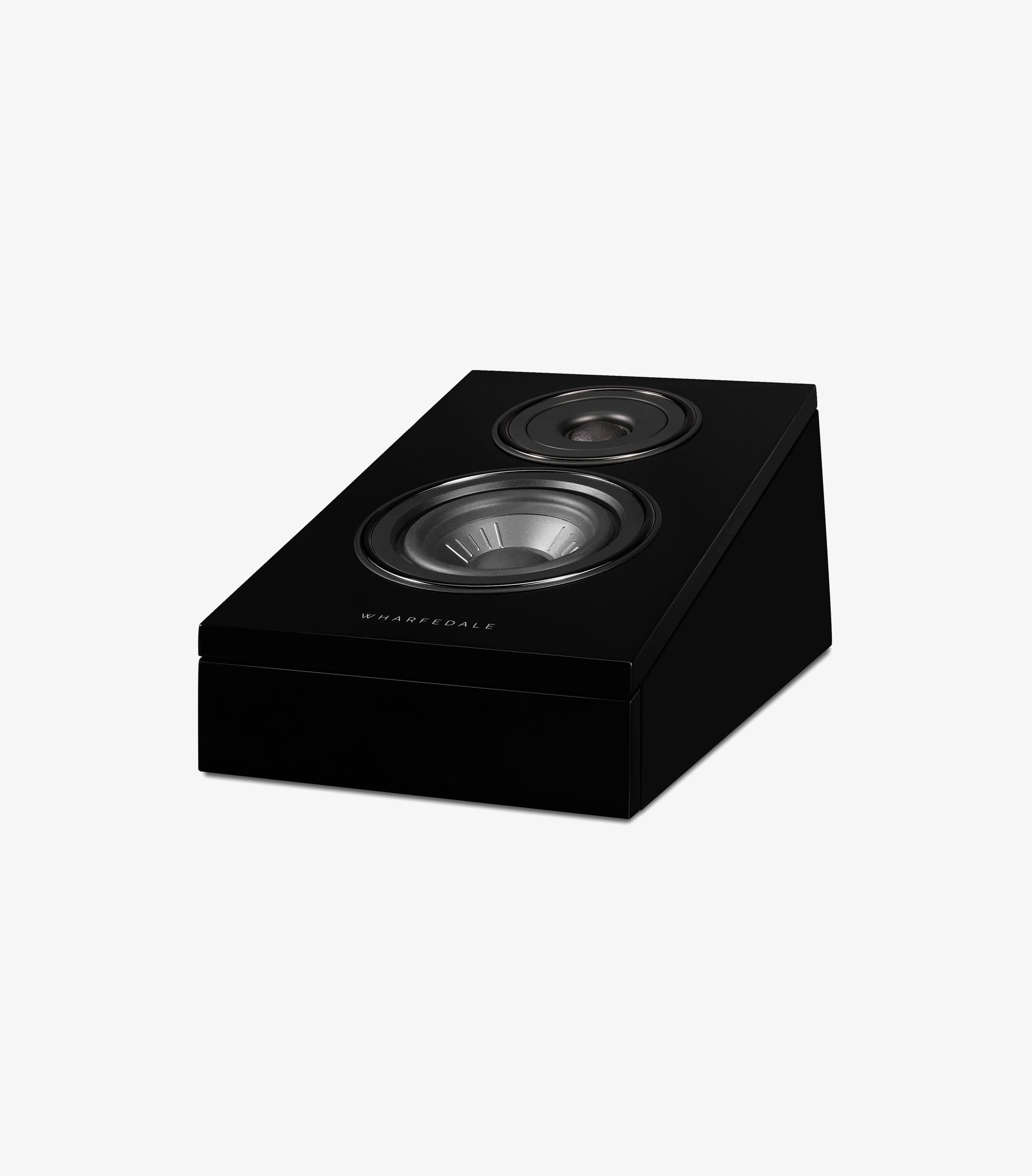

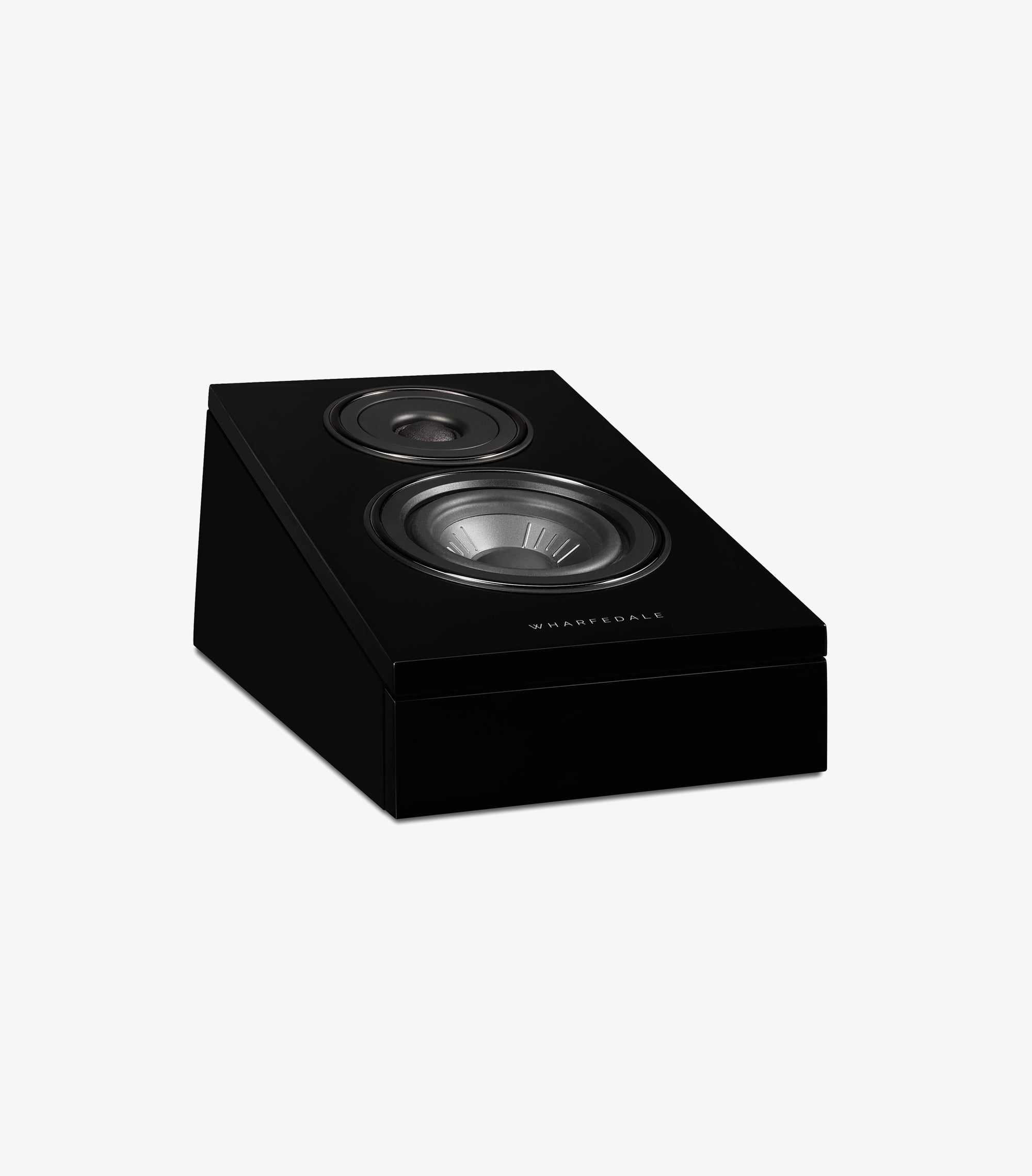

Diamond 12.3D Surround Speakers in black

Discontinued

Discontinued — Surround Speaker

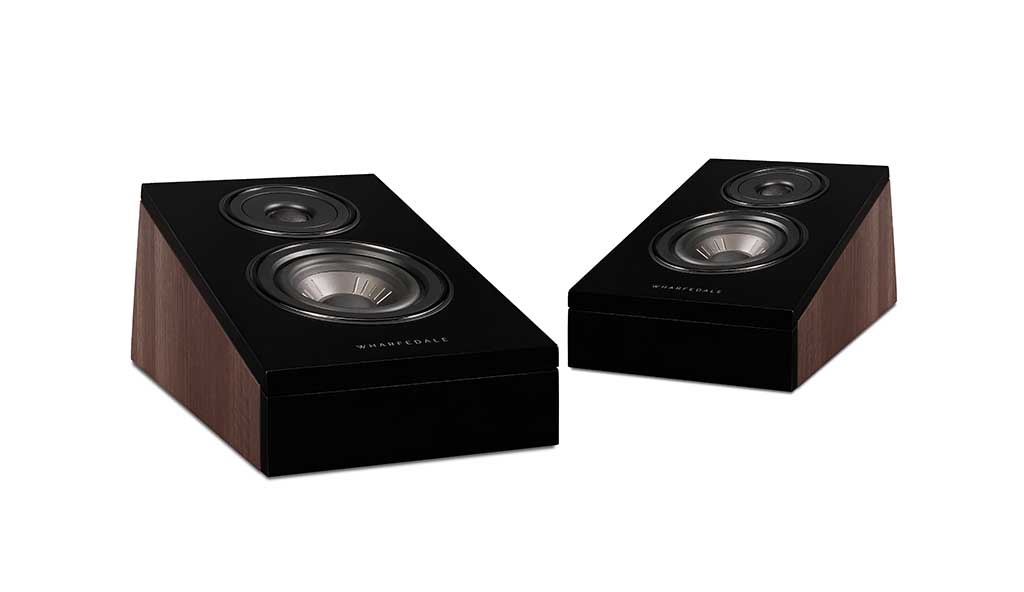

Diamond 12.3D Surround Speakers

Since 1982, Wharfedale’s famous DIAMOND speakers have served as the classic entry point to true high-fidelity sound, their exceptional sonic value for money earning numerous ‘product of the year’ accolades in the UK and around the world. This autumn, with the introduction of the all-new DIAMOND 12 Series, Wharfedale once again raises the bar for affordable, high-performance loudspeakers.

With this newest addition to the record-breaking, award-winning DIAMOND 12 series, Wharfedale takes surround sound to the next level with the DIAMOND 12 3D surround speaker.

Covering the audience in a dome of sound, following Wharfedale’s long history in cinematic and home theatre solutions, you can now have a 3D cinema-audio listening experience at home with your DIAMOND 12 series configuration.

$849.99

Expert technical support
3 years manufacturer warranty
Free shipping on orders over $300

Klarity affords focus

New Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.

Low colour and expression

The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.

A magnet of forces

A precision-made magnet system with an aluminium compensation ring minimises the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the motor system.

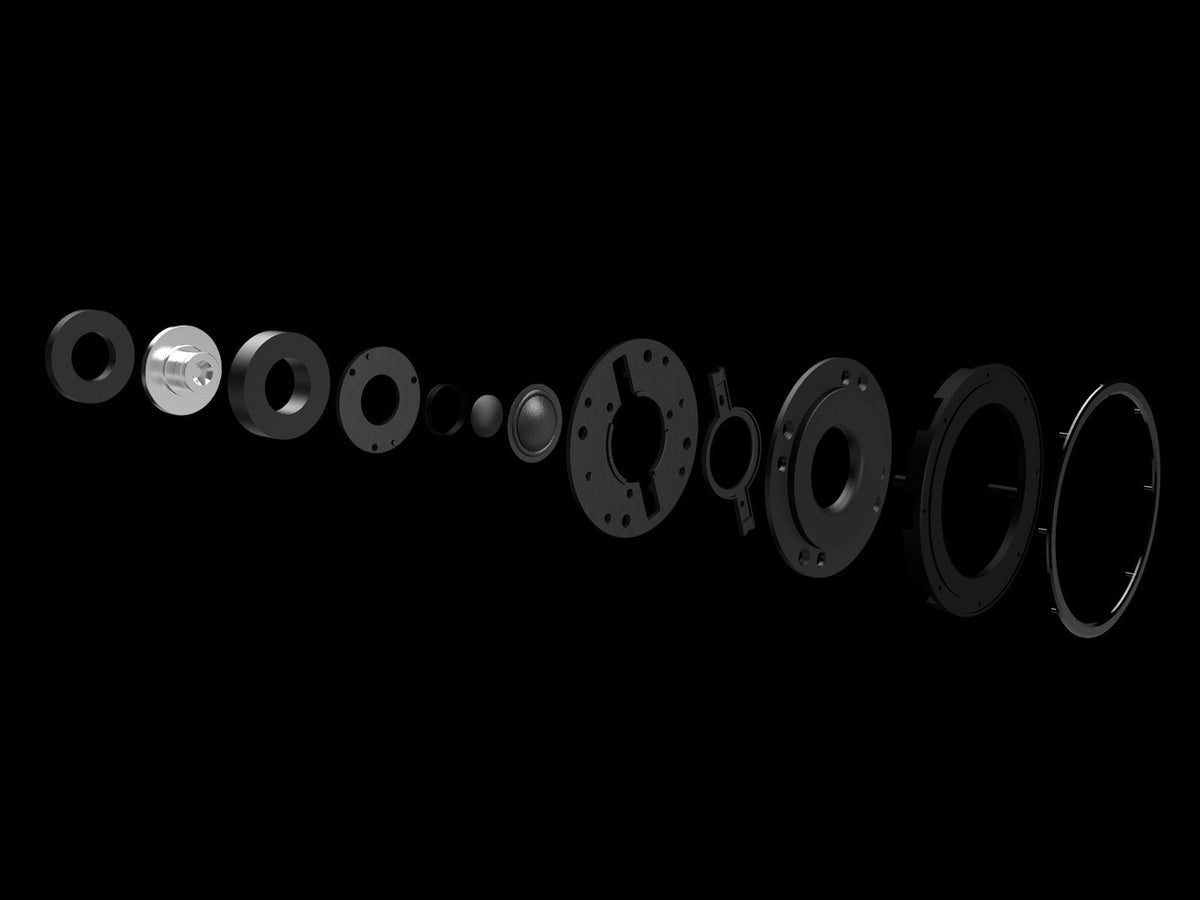

A voice coil beyond this class

The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.

DIAMOND highs

The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.

A crossover of style

The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.

Firm and fair

The DIAMOND 12 3D's closed-box enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identifiable characteristics of the cabinet's sound. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.

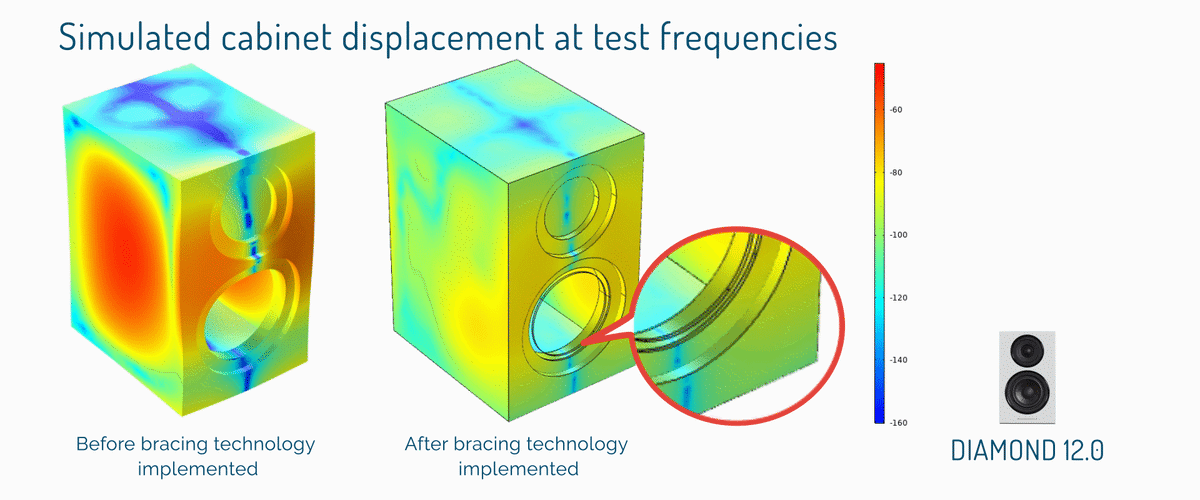

Brace yourself

Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace figure-of-eight brace, which may simply transfer resonance from one wall to another.

Frequently Asked Questions

What room size suits the Diamond 12.3D Surround Speakers?

The Diamond 12.3D Surround Speakers is a surround/Atmos speaker for home cinema — wall or stand mount it to the sides or rear of your seating for an enveloping soundfield.

What amplifier do I need for the Diamond 12.3D Surround Speakers?

The Diamond 12.3D Surround Speakers is rated for 20-100W amplifier power and a sensitivity of 82dB, with a 8Ω Compatible nominal impedance — it pairs happily with most quality stereo or AV amplifiers.

What is the frequency response of the Diamond 12.3D Surround Speakers?

The Diamond 12.3D Surround Speakers covers 110Hz ~ 20kHz (+/-3dB), reproducing deep bass through to airy, extended treble.

What finishes is the Diamond 12.3D Surround Speakers available in?

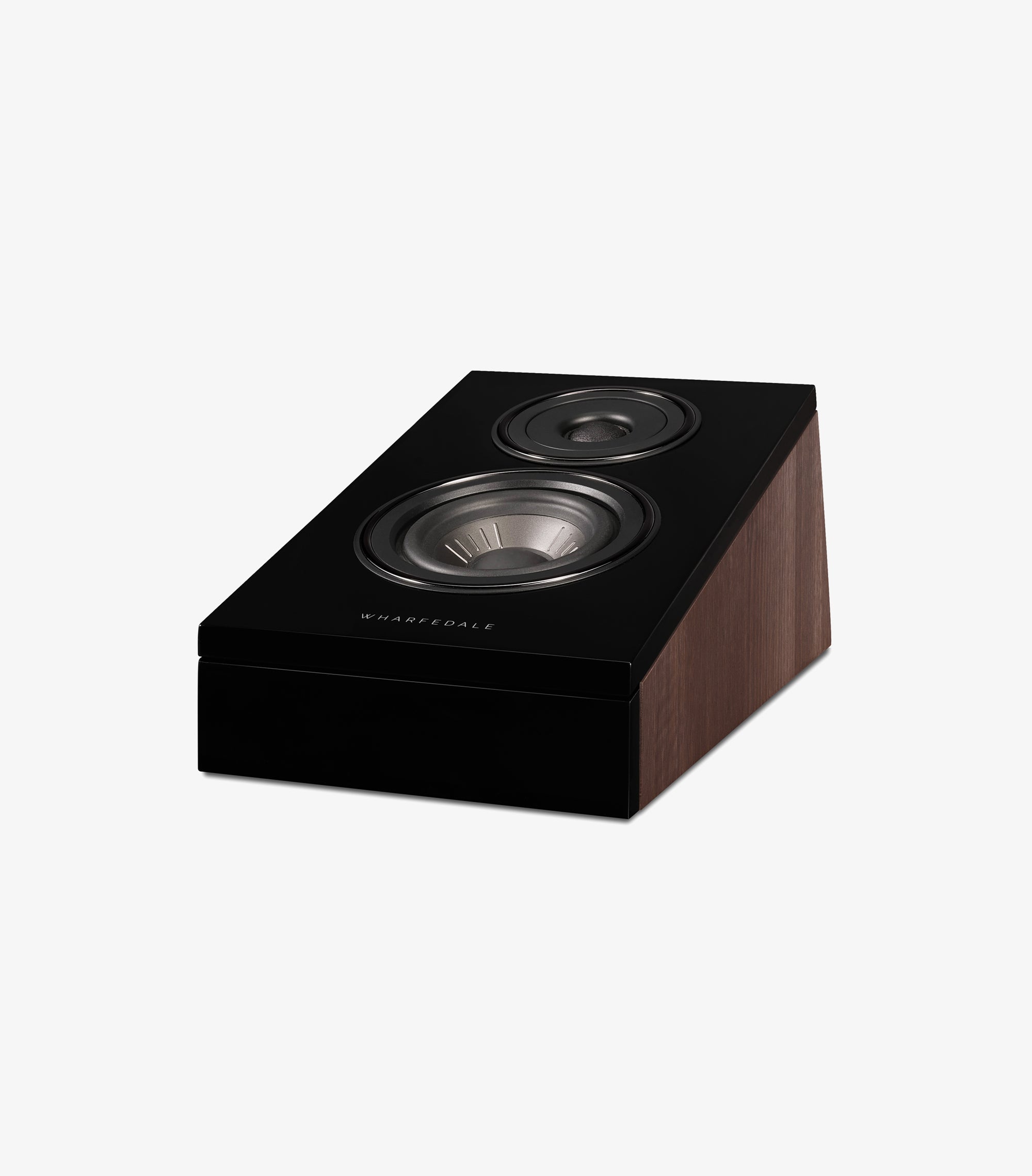

The Diamond 12.3D Surround Speakers is available in Walnut, Black, Light Oak and White.

Is the Diamond 12.3D Surround Speakers covered by warranty in Australia?

Yes. As the authorised Australian distributor, AVR provides a genuine local warranty on all Wharfedale speakers. See our warranty terms for details.
