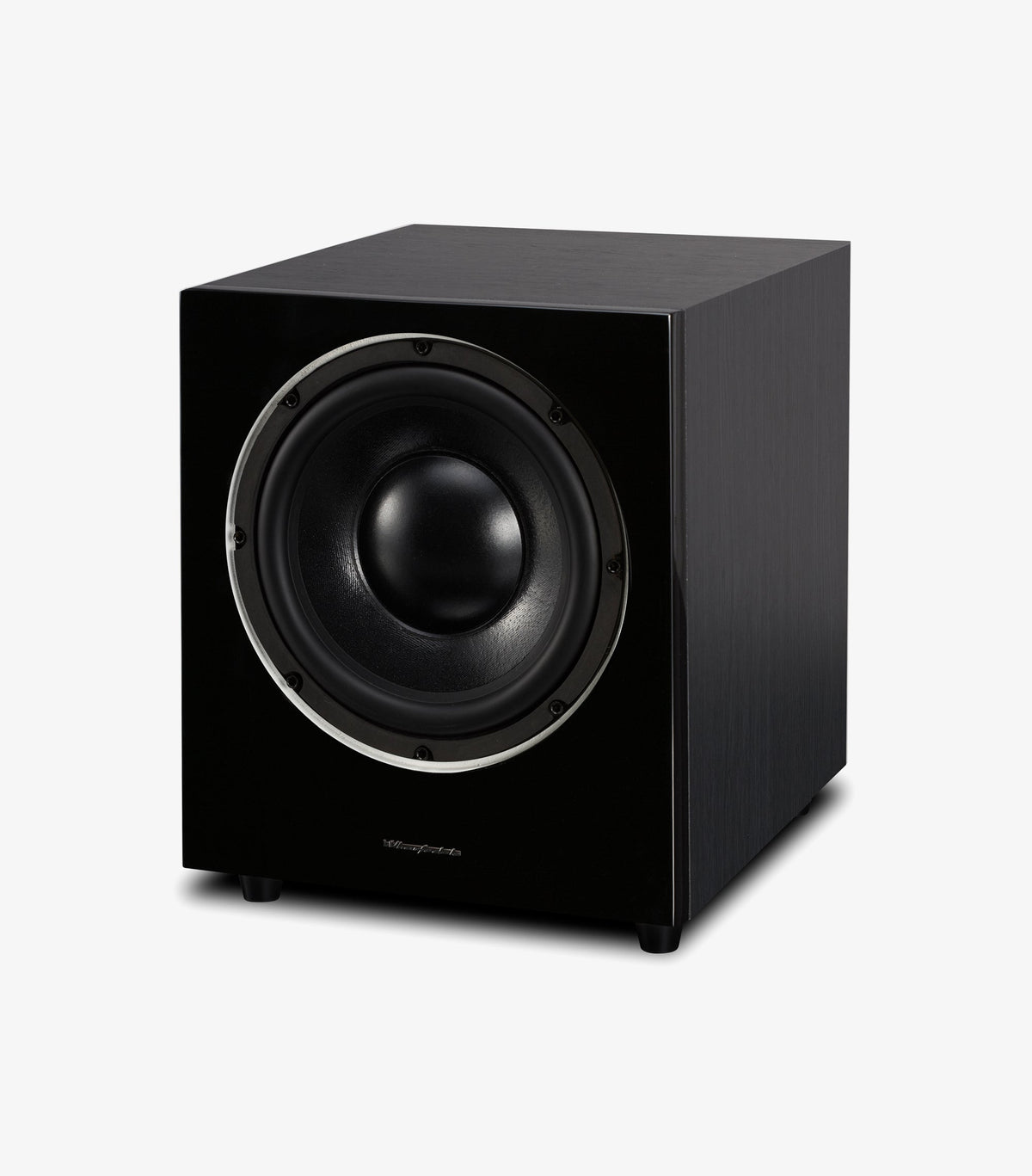

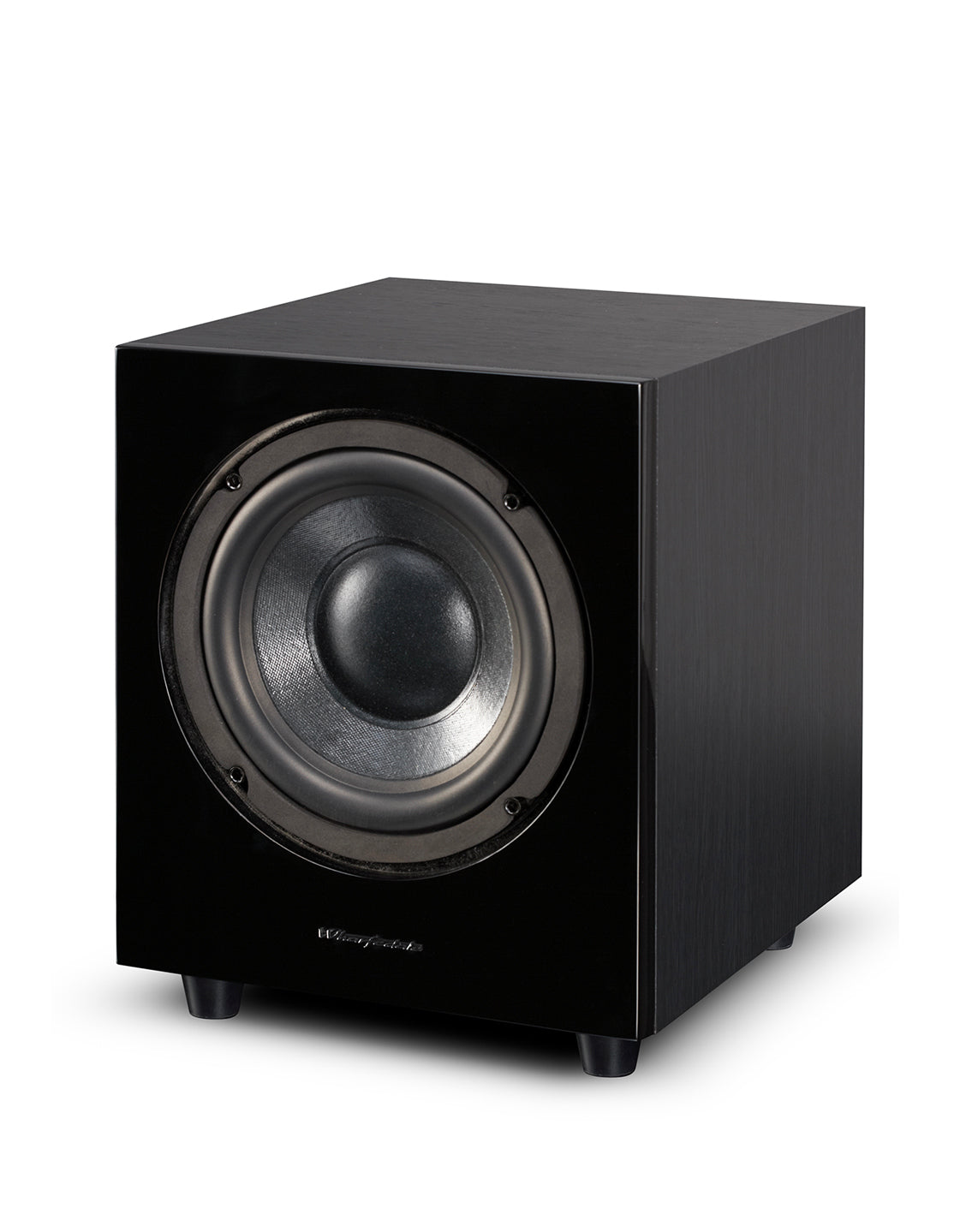

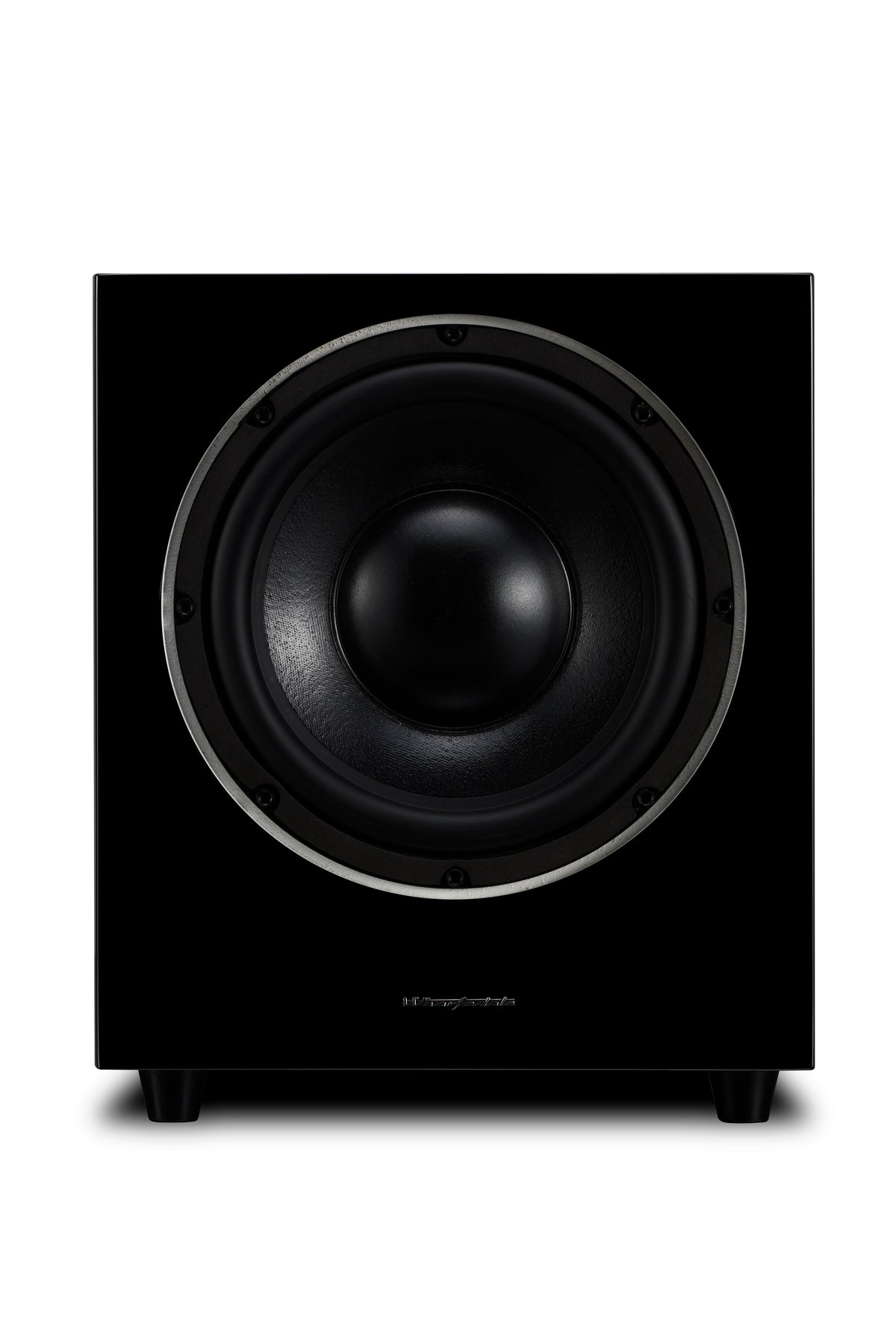

WH-D10 Subwoofer

$999.99

The WH-D10 is a versatile active subwoofer — a 10" sub for stereo and home cinema systems in small to medium rooms. A 10" (250 mm) long-throw driver, powered by a 150 W amplifier, reaches down to 35 Hz for impactful, musical bass.

It covers a 35 – 150 Hz response with 300 W of peak power and up to 110 dB output at 1 m. Low-pass slope adjustment, phase inversion, auto on/off and a high-pass output give flexible integration, alongside stereo RCA and mono LFE inputs.

It is a mid-range model in our subwoofer range, stepping up from the WH-D8. Match it with any speakers from our home cinema range.

Wharfedale Australia is the official, AVR-authorised distributor — every WH-D10 is backed by genuine Australian warranty and local support.

Experience all you’ve been missing.

Our vision behind the D8 and D10 subwoofer series has long been clear: deliver a level of performance previously unheard of in its class and introduce listeners to the beauty of bass. Both D8 and D10 subwoofers take this one step further, making your first serious step into the world of the subwoofer more exciting, more dynamic and more compelling. Truly feel – in your chest – the high-impact excitement of your favourite films. Follow with vivid detail the stunning textures of bass guitar riffs, drum beats and cello notes like never before. Experience all that you’ve been missing thanks to D8 and D10

WH-D10 is designed to support your system – no matter its specifications – to significantly enhance your listening experience, not overpower it. So D10 is subtle when there, but blindingly obvious when it's not. Its non-pressed paper cones increase self-damping and improve the structural rigidity of the cone itself. This helps overcome muddied and distorted bass detail to deliver taught, high impact bass response. Kick drums snap perfectly to the beat, cinematic explosions blast in time to the visuals, all of it designed compliment the effects of your loudspeakers and enhance their sonic performance.

Perfectly matched to suit your favourite speaker set

WH-D10 features a 1 x 250mm long-throw driver cone delivering a frequency response between 35Hz - 150Hz. This ensures that D10 provides fast, accurate and intensive bass response. Cabinet size is 363 x 333 x 372mm so that subwoofer placement is easy and non-invasive. It comes with a low-frequency bass extension below 30Hz, with 86dB dynamic range, meaning deep and expressive bass notes when they’re needed. And D10 comes with high-gloss lacquered front baffles available in black and white, matching seamlessly with the award-winning Diamond 200 series and perfect with your home environment.

Available in these styles

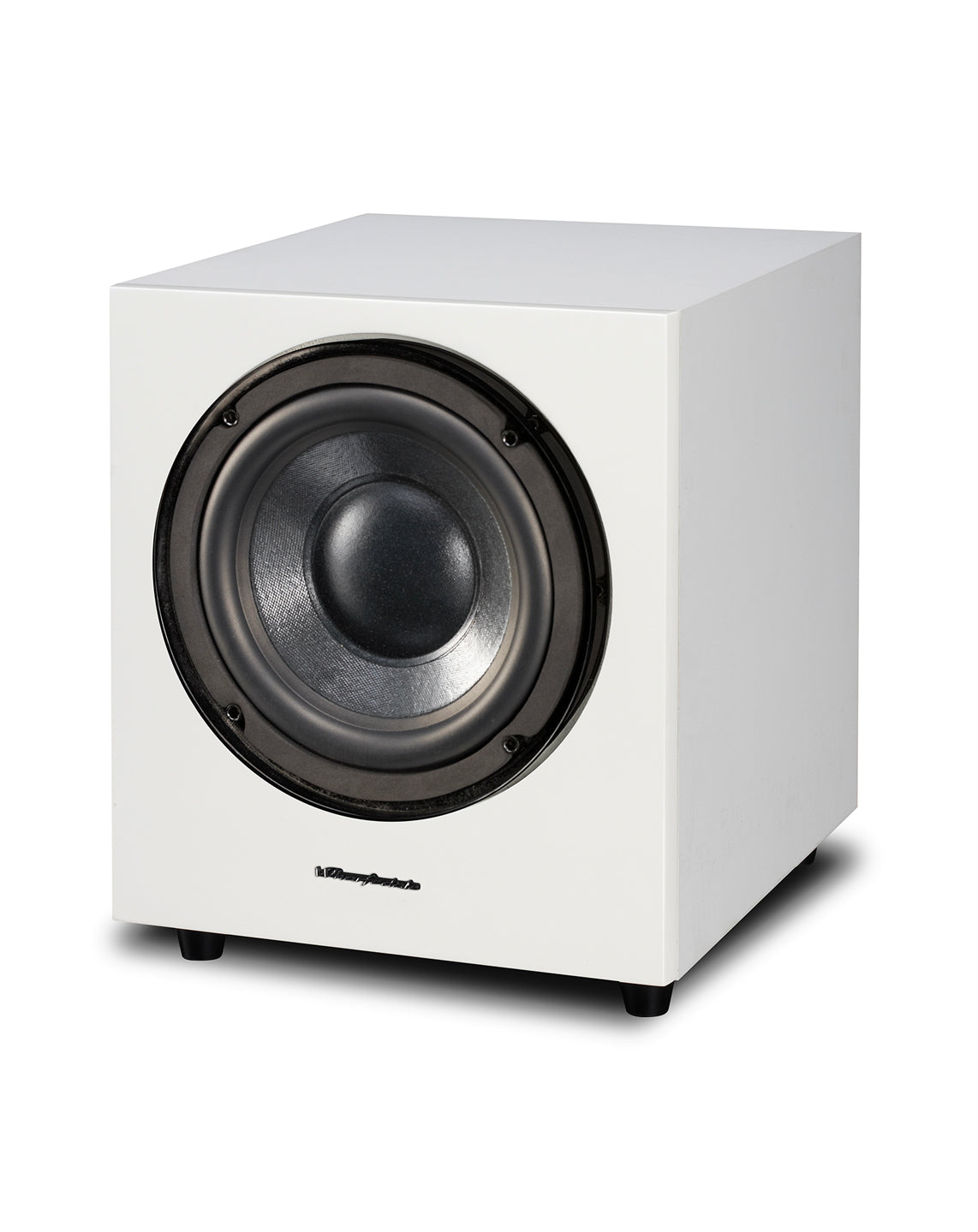

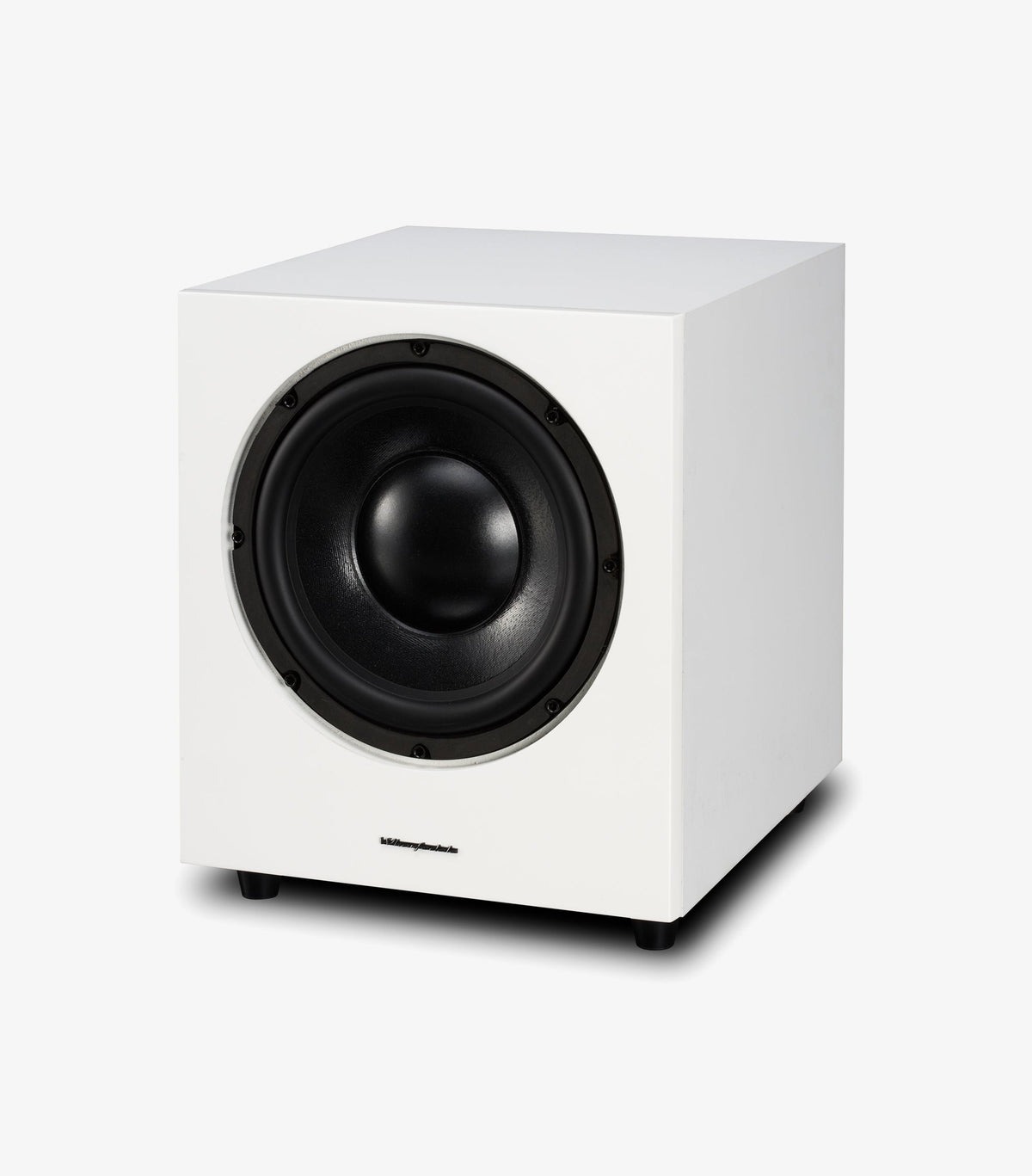

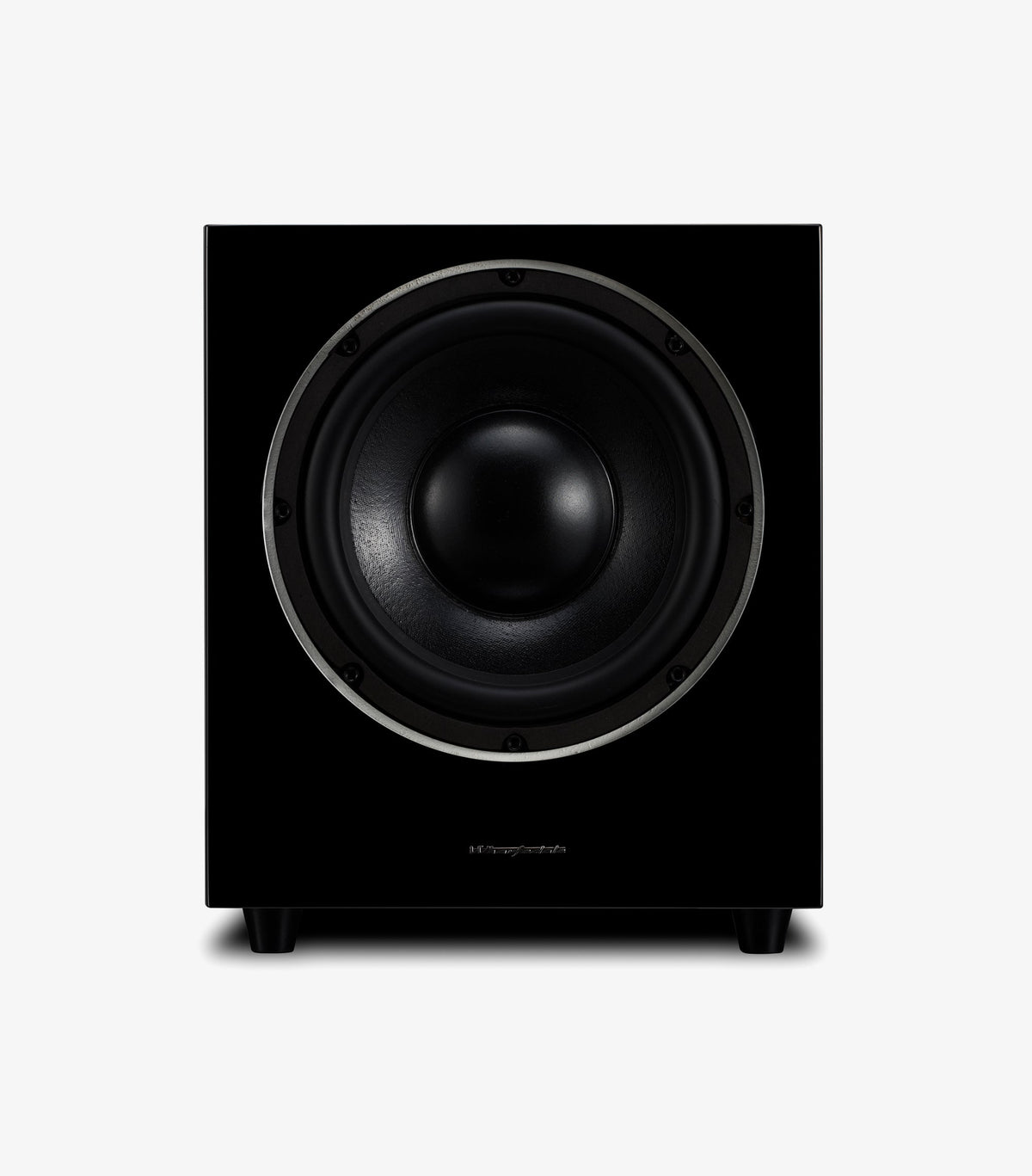

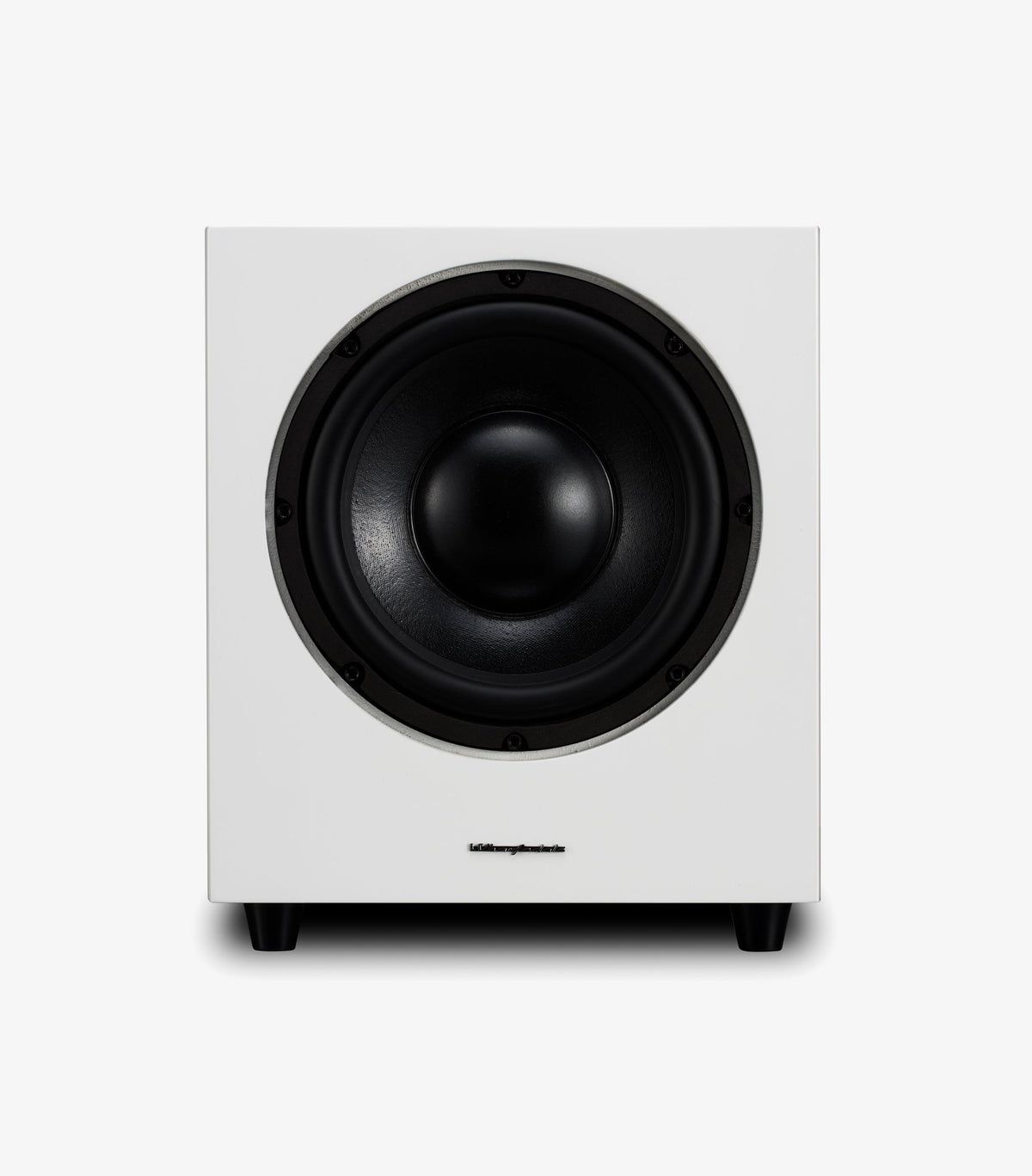

Piano Black	Piano White

technical specifications

Enclosure Type	Sealed
Bass Driver	250mm (10") Composite Fibre Cone
Amplifier Power	150W (300W Max)
Input Sensitivity	100mV for 150W
Frequency Response	30Hz - 150Hz
SPL	110dB
Dimensions (H x W x D) in mm	394 x 333 x 372
Weight	165kg
Available Colours	Black, White
