D300 Series

Wharfedale and a team of esteemed specialists have created a range of ‘budget’ speakers that punch far above their weight, elevating expectations of what can be achieved at such lowly price points. And, despite the speakers’ compact size, the soundstage they produce is substantial and engaging, their expressive midrange definition transitioning seamlessly with fluid high-frequency detail. The bass reaches surprising depths yet remains lucid, accurate and controlled, thanks to the speakers’ advanced bass drivers and P-EQ bass reflex port. Whether the music is driving and energetic or soft and subtle, from rock and electronica to classical and jazz, the D300 Series speakers deliver captivating sound.

Advanced bass and midrange drivers

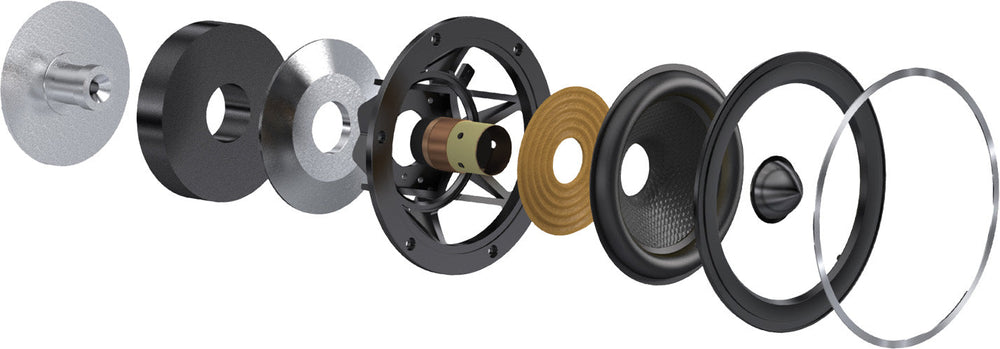

The D300 Series incorporates the most advanced drive unit systems ever seen in such an affordable loudspeaker range. For the bass/mid drivers, the latest generation of Wharfedale’s long-established woven Kevlar cones are bonded to a super-lightweight rubber surround, delivering remarkable clarity, texture and musical expression.

These cones are driven by a super-long-throw voice coil motor system, enabling low-frequency linearity and accuracy that is exceptional for such low-cost loudspeakers. The use of a specially shaped one-piece pole plate fitted with a copper cap reduces inductance and controls the magnetic flux, ensuring low distortion through the critical midrange area. Oversized ceramic magnets – a technology pioneered by Wharfedale in the 1960s – ensure high sensitivity, smooth response and absolute control of cone movement over lower bass frequencies.

The driver assembly is mounted in a specially designed basket with a network of ribs to increase rigidity, thus improving transient impact. A large open area behind the cone reduces early reflections and allows the internal cabinet absorbent to do its work.

Crossover and cabinet design

The output of the drive units is carefully combined by a thoroughly researched crossover developed using Wharfedale’s Advanced Software and Listening Iteration system. Each crossover is carefully evaluated using a wide range of music, with the emphasis being on the lifelike reproduction of voices and instruments in addition to the dynamics of the musical performance. Crossover components feature low-loss polypropylene capacitors and laminated core inductors for optimum transfer of the music signal.

The acoustically profiled cabinets feature 28mm-thick front baffles – a luxury, engineering touch to such low-cost speakers – profiled at the edges to reduce diffraction edge reflections at mid to high frequencies. Critical bracing of the cabinet panels contributes to the eradication of audible resonance and, combined with the rounded cabinet edges, yields a rigid base on which to mount the drive units. In addition, the cabinet walls are lined with a specially developed internal fibre, chosen for its outstanding absorbent qualities across a wide bandwidth.

The result is that the listener hears the drive unit output unsullied by unwanted colourations caused by panel vibration or internal resonances, revealing more of the detail of the musical performance.

P-EQ™ bass reflex port

Developed from the Slot-Loaded Distributed Port found in the Diamond 11 Series, the D300 Series’ P-EQ (Pressure Equalisation) port system is critical to the speakers’ deep and controlled bass performance.

Low bass frequencies emitted from the rear surface of the bass driver travel through a downward-firing port in the base of the speaker, with precisely curved openings to smooth airflow. These frequencies exit into the room omnidirectionally through a gap between the cabinet and the surface on which it rests (or, in the case of the D330, between cabinet and plinth), formed by four ‘feet’ attached to the speaker’s base. This reduces the pressure differential between the high pressure in the port and the low pressure in the room, thus eradicating the turbulence and audible ‘chuffing’ suffered by conventional ported systems whilst aiding bass reflex efficiency.

The result is a natural recreation of the fundamental notes of bass instruments, matching the realistic sound of the midrange and treble characteristics. It also allows the listener to position D300 Series speakers closer to a rear wall than would be possible with conventional rear-ported speakers, helping to make them less obtrusive in a room setting.

Collaborate to innovate

Wharfedale called upon the talents of well-known specialists to develop the D300 Series. These specialists produced many of the award-winning designs for Wharfedale’s sister-companies Mission and Quad. Acoustic performance was managed by Peter Comeau, Wharfedale’s Director of Acoustic Design and one of Britain’s foremost loudspeaker designers.

Together, the talented teams led by these esteemed specialists have created a range of ‘budget’ speakers that punch far above their weight, elevating expectations of what can be achieved at such lowly price points. Despite the speakers’ compact size, the soundstage they

produce is substantial and engaging, their expressive midrange definition transitioning seamlessly with fluid high-frequency detail. Bass, meanwhile, reaches surprising depths yet remains lucid, accurate and controlled, thanks to the speakers’ advanced bass drivers and P-EQ bass reflex port. Whether the music is driving and energetic or soft and subtle, from rock and electronica to classical and jazz, the D300 Series speakers deliver captivating sound.

Discontinued

View product

D300C Centre Speaker

Discontinued

View product

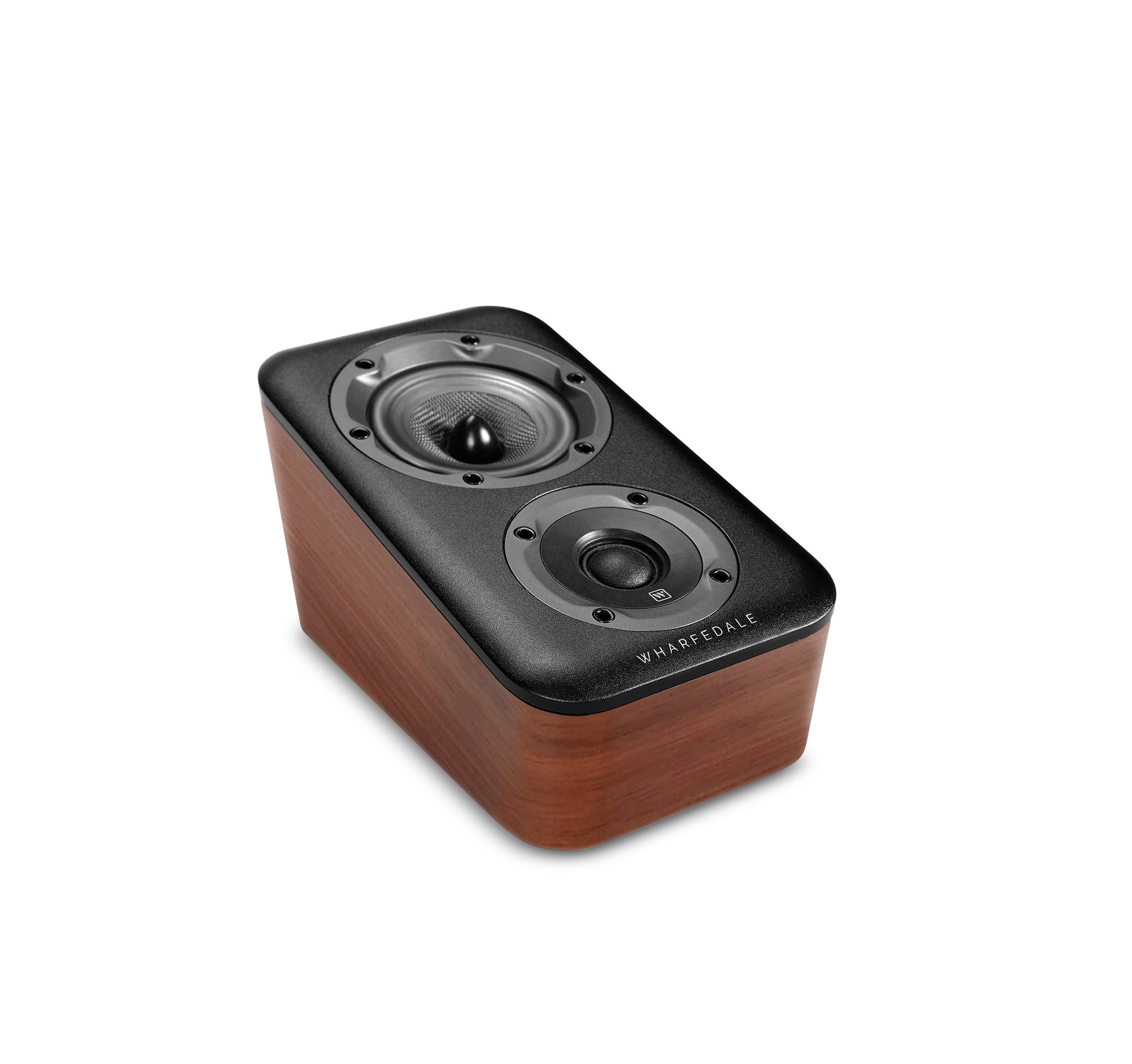

D300S Surround Speaker

Discontinued

View product

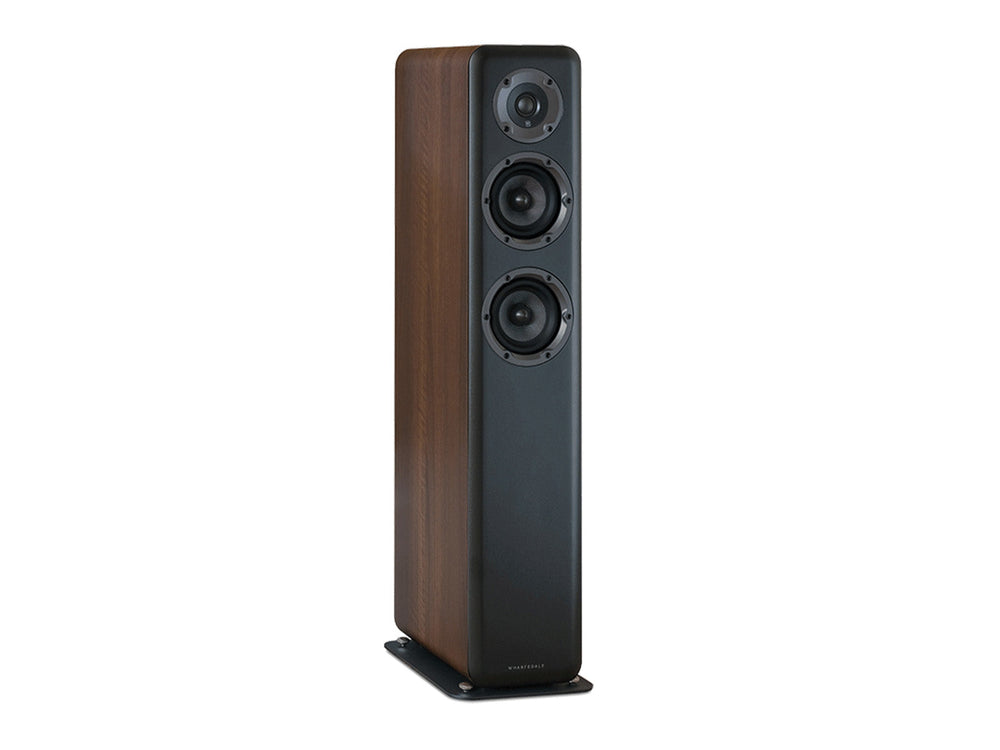

D330 Floorstanding Speakers

Discontinued

View product

D310 Bookshelf Speakers

Discontinued

View product

D320 Bookshelf Speakers

The D300 Series is Wharfedale's compact budget range that punches far above its weight — voiced by acclaimed designer Peter Comeau and built around an advanced P-EQ bass-reflex port for deep, controlled bass from a small cabinet.

Compact standmounts, a slim floorstander and a centre channel for stereo and home cinema.

British sound since 1932Wharfedale was founded in 1932 in Yorkshire, UK, by Gilbert Arthur Briggs.

3 Year WarrantyWe provide a 3-year warranty for all Wharfedale products.

Free Australia wide shippingFree on all Australian orders over $300.

What makes the D300 Series special

D300 was developed with specialists behind award-winning designs for Wharfedale's sister brands Mission and Quad, led by acoustic director Peter Comeau. Its P-EQ bass-reflex port extracts surprising bass depth from a compact cabinet, making it ideal where space is tight. Want more output? Step up to the Diamond 12 Series.

Which D300 model is right for your room

The compact D300 standmounts are perfect for small rooms, desktops and bookshelves. The slim floorstander suits small to medium rooms where space is limited, and the centre channel completes a compact home cinema.

What to pair with D300 speakers

D300 is easy to drive and works beautifully with 20–80 watts per channel from a compact amplifier or stereo receiver. Place standmounts on stands or a solid shelf, and add a subwoofer for movie bass.

Frequently Asked Questions

What is the Wharfedale D300 Series?

D300 is Wharfedale's compact budget loudspeaker range, voiced by acclaimed designer Peter Comeau and built around a P-EQ bass-reflex port that delivers deep, controlled bass from a small cabinet.

Why does the D300 sound bigger than it looks?

Its advanced P-EQ (Pressure Equalisation) bass-reflex port and carefully tuned drivers extract surprising bass depth and a substantial soundstage from a compact cabinet — ideal where space is limited.

Which D300 model should I choose?

Choose the compact standmounts for small rooms, desktops and bookshelves, the slim floorstander for small to medium rooms, and add the centre channel for a compact home cinema.

What amplifier suits the D300 Series?

D300 is easy to drive and sounds great with around 20–80 watts per channel from a compact amplifier or stereo receiver.

Can D300 speakers be used on a desktop or bookshelf?

Yes — their compact size and rear P-EQ port make them well suited to desktops, bookshelves and small rooms, though stands at ear height still give the best imaging.

Is my Wharfedale D300 purchase covered by warranty in Australia?

Yes. As the authorised Australian distributor, AVR provides a genuine local warranty on all Wharfedale speakers. See our warranty terms for details.
