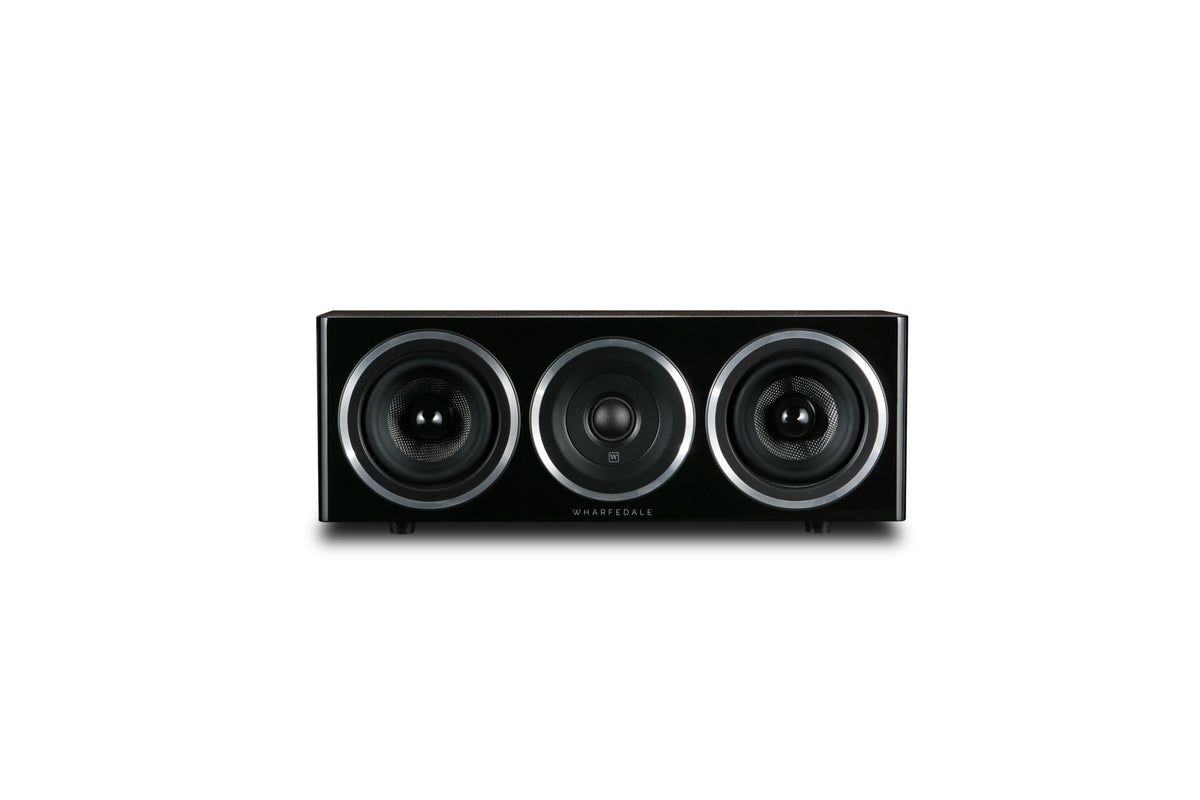

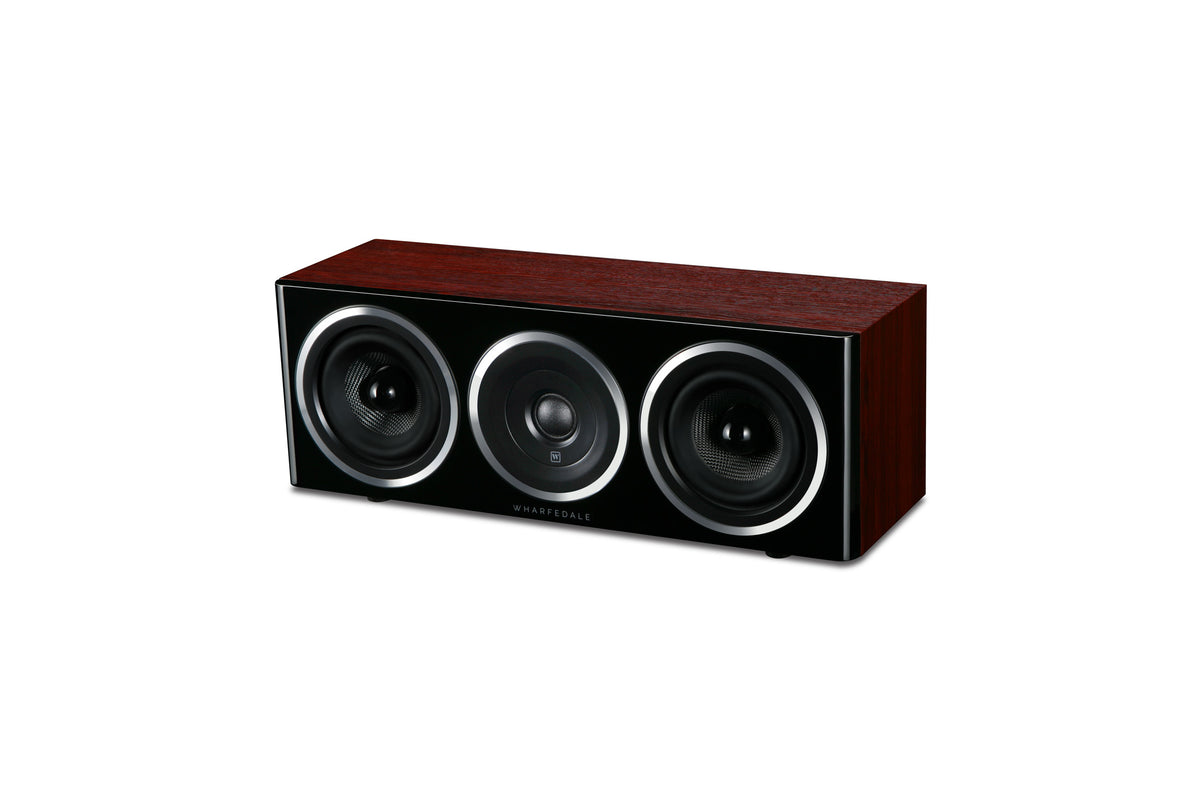

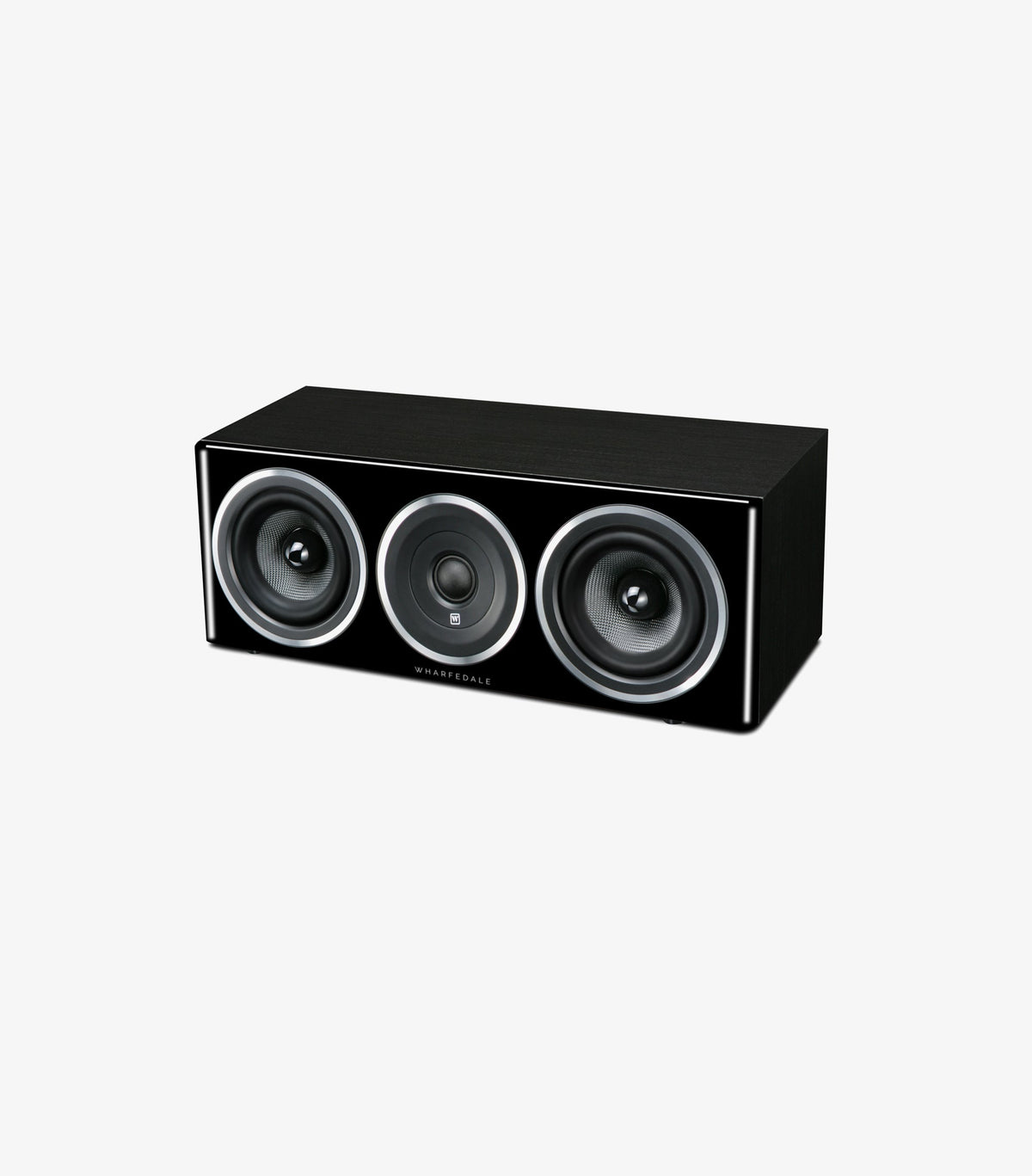

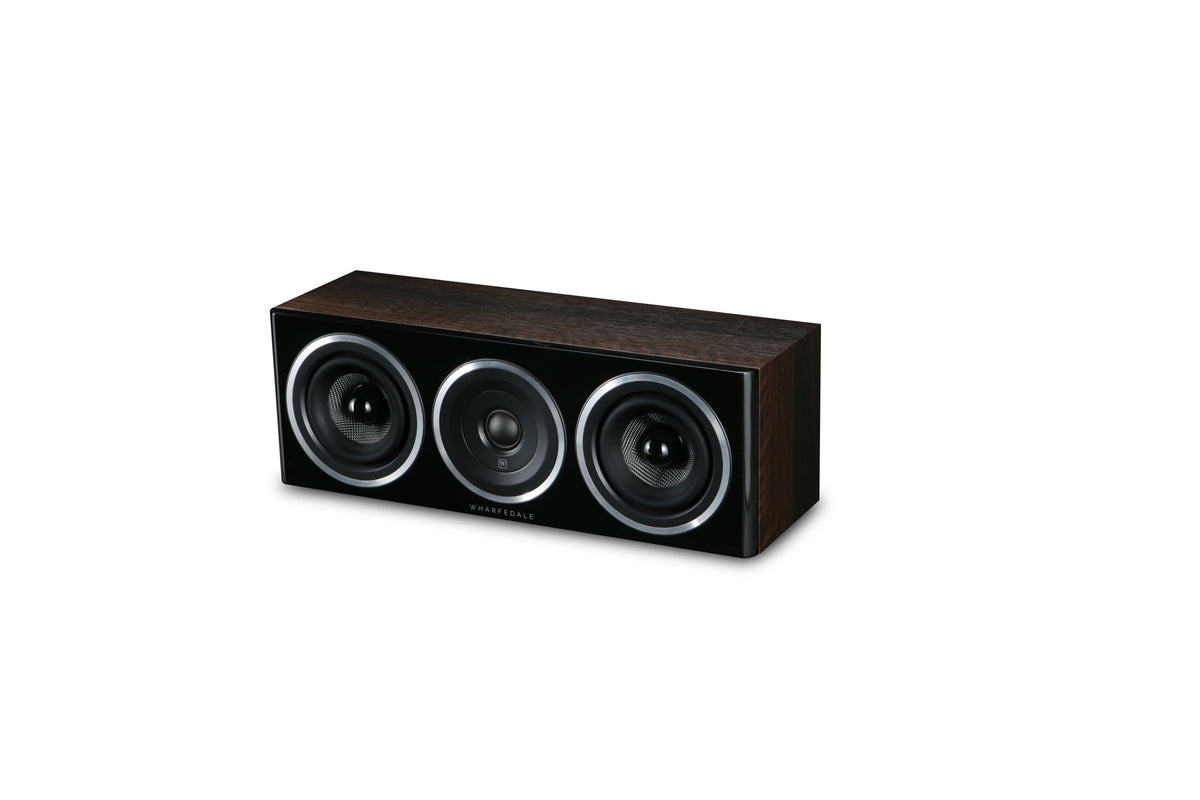

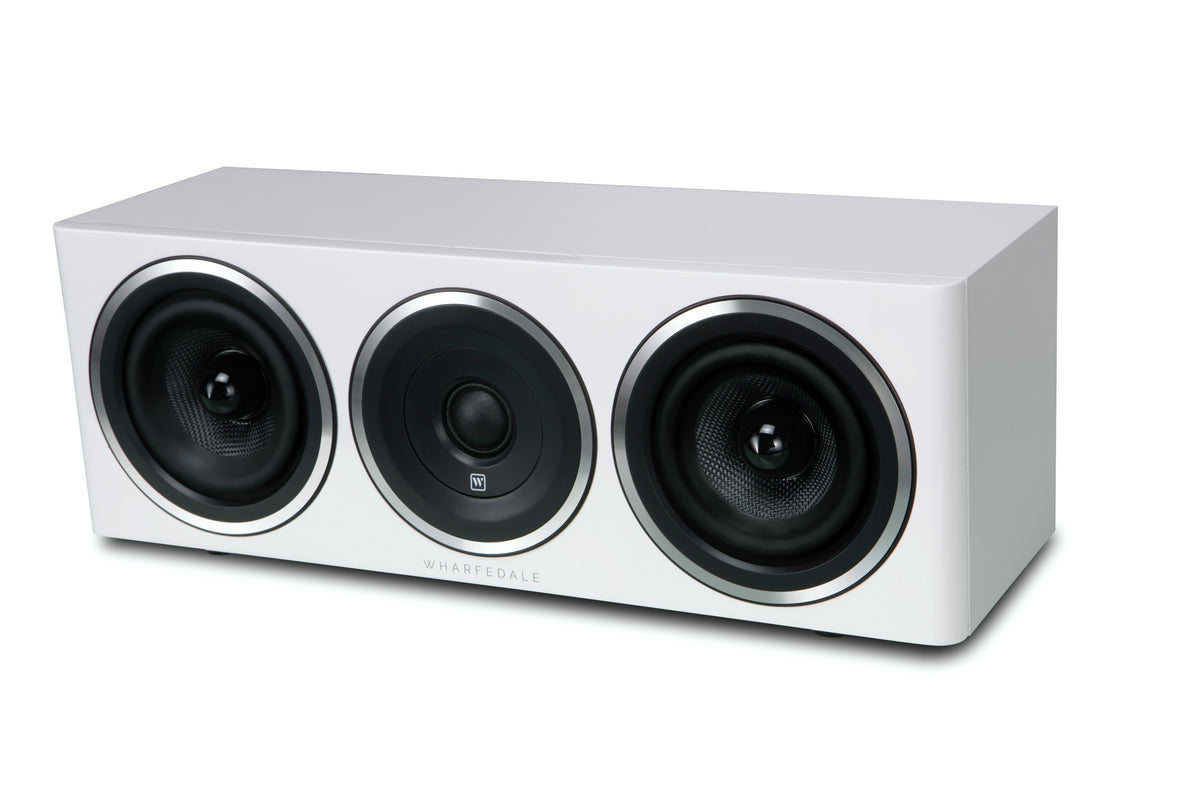

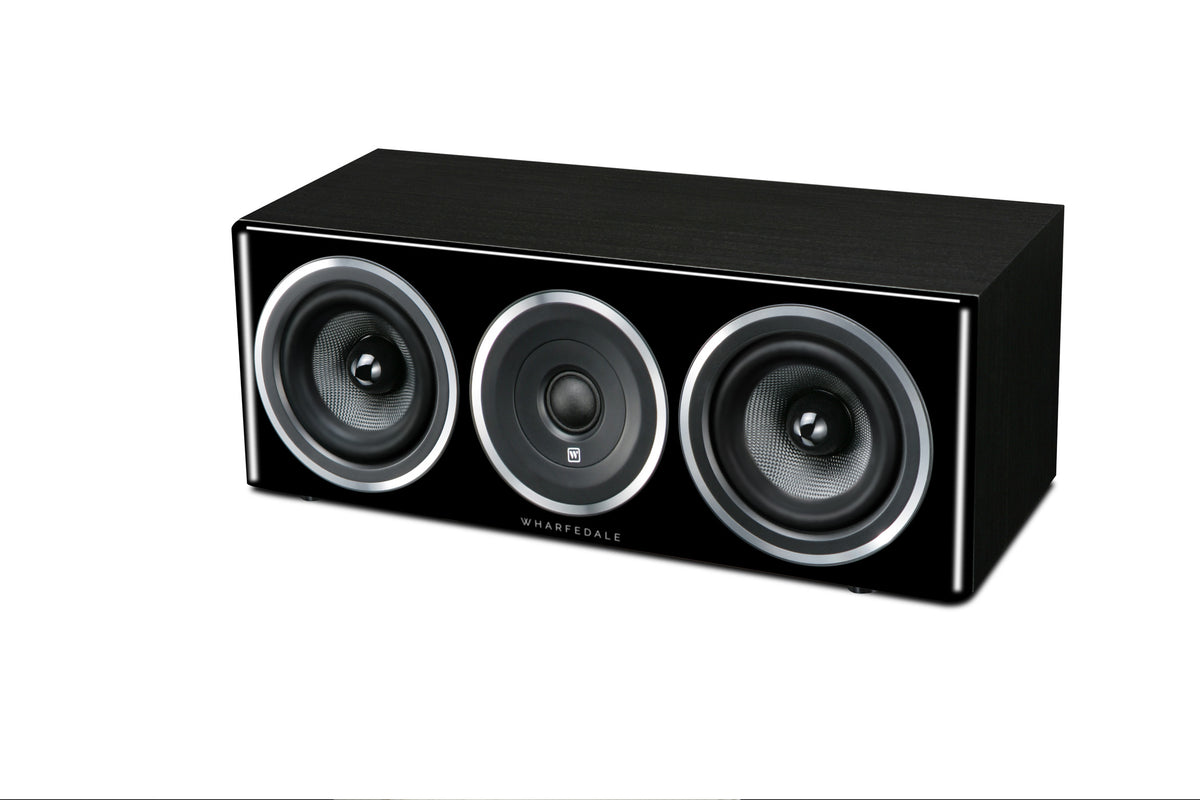

Diamond 11.CC Centre Speaker

Sold Out $314.99

The Diamond 11.CC is a compact two-way centre-channel speaker — the dialogue anchor for a Diamond 11 home cinema built around the standmount models. Twin 4" (100 mm) woven Kevlar® drivers flank a 1" (25 mm) textile-dome tweeter for clear, intelligible speech in a slim cabinet.

Built on a 5 L cabinet crossing over at 2.4 kHz, the 11.CC covers an 85 Hz – 20 kHz response up to a 95 dB peak SPL. At 87 dB sensitivity and 8 Ω (4.2 Ω minimum), it is an easy, efficient match for any AV receiver from 25 to 100 W.

It is the slim centre option in the Diamond 11 Series — ideal paired with the 11.0 or 11.1 standmounts. See all our centre speakers.

Wharfedale Australia is the official, AVR-authorised distributor — every Diamond 11.CC is backed by genuine Australian warranty and local support.

Champagne Speakers on a Beer Budget.

The most loved Wharfedale loudspeaker is ready to make your ears drool all over again. Available in Black, White, Rosewood and Walnut, the new Diamond 11 series features slot-loaded bass ports, the latest generation Diamond drive units, kevlar woven cones and a sandwiched cabinet construction. The result, our best Diamond series to date and your most affordable high-end audio experience. And with a wide range of bookshelf, floorstanding and centre channel options, there’s the perfect Diamond 11 loudspeaker to suit your listening space.

High-end drivers. Low-end cost. It’s music to your earsi

With massive ceramic magnets to extend the midrange response and provide absolute cone control, the listening experience is breathtaking. Vocals are wonderfully textured, instruments beautifully expressive. A newly evolved tweeter design delivers crisp, detailed high-frequencies while the slot-loaded bass port improves overall low-frequency performance. This makes each Diamond loudspeaker in the series a true all-rounder, perfectly compatible with every album in your collection, every new release, EP, and playlist on your provider. Let’s face it, you’re going to fall in love with music all over again.

Create a Movie & Popcorn Paradise

Diamond 11.CC is a 2-way centre channel loudspeaker featuring a 25mm textile dome tweeter and 2 x 130mm woven kevlar bass drivers. Combined with a a slightly larger chassis than Diamond 11.CS (170mm x 480mm x 200mm), Diamond 11.CC is perfect for medium to large sized living rooms and home theatre spaces. Enjoy superb dynamics, complete dialogue clarity, and rich vocal texture thanks to our flagship centre channel loudspeaker. Never miss a single word of dialogue again. Never spend a fortune on a night out at the movies again. Experience home theatre like never before thanks to Diamond 11.CC

Technical Specifications

Description	2 Way Centre Speaker
Enclosure Type	Bass Reflex (down ported)
Bass Driver	2 x 100mm (4") Woven Kevlar cone
Tweeter	25mm (1") soft dome
Frequency Response (+/-3dB)	85Hz - 20kHz
Sensitivity (2.83V@1m)	87dB
Recommended Amplifier Power	25W-100W
Nominal Impedance	8 Ohms Compatible
Dimensions (H x W x D) in mm	145 x 420 x 138
Weight	4.1kg
Stocked Colours	Blackwood, Rosewood, Walnut, White Sandex
