Choose in-wall speakers when you want focused sound from the front of the room, such as left and right speakers either side of a TV or a stereo pair for music. Choose in-ceiling speakers when you want sound spread evenly over an area, such as background music in a kitchen or living space, or surround and height channels in a home cinema. Both mount flush so only a slim grille shows, both need an amplifier, and both are easiest to fit during a build or renovation. This guide compares the two, with Wharfedale's WWS in-wall and WCM in-ceiling ranges as examples.
The short answer
| In-wall | In-ceiling | |
|---|---|---|
| Sound | Aimed at you from ear level, so voices and instruments are placed precisely | Spread from above, so it is even across a wide area |
| Best for | Front left, centre and right in a home cinema; stereo music | Background music, multi-room, surround and height channels |
| Typical rooms | Lounge, media room, either side of a wall-mounted TV | Kitchen, dining, open-plan living, hallways |
| Wharfedale range | WWS-65, WWS-80 | WCM-65, WCM-80 |

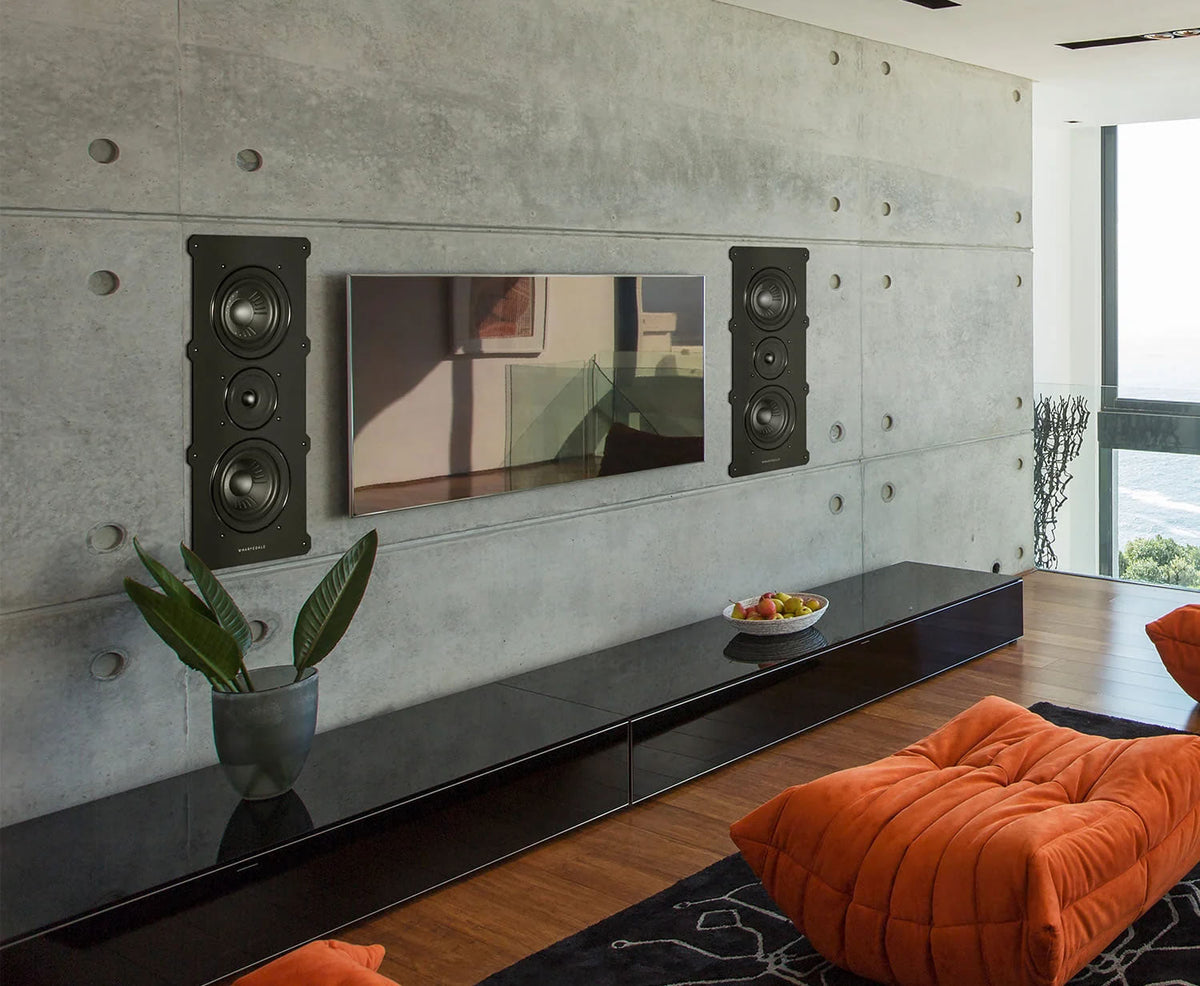

When in-wall speakers are the better choice
An in-wall speaker sits at roughly ear height and faces you, the same as a freestanding speaker. That keeps dialogue anchored to the screen and lets a pair create a proper stereo image, so in-wall is the right choice for the front speakers of a home cinema or a discreet music system in the lounge. The 8-inch WWS-80 reaches down to 43 Hz, which is deep for an in-wall design; the 6.5-inch WWS-65 suits smaller rooms and surround duty.
When in-ceiling speakers are the better choice
An in-ceiling speaker fires down, so its sound covers the floor below evenly. You lose some of the precise placement of a pair at ear height, but you gain even coverage wherever people stand, which is exactly what you want for music in a kitchen or across open-plan living. In-ceiling speakers also make tidy surround and height channels in a home cinema. Both Wharfedale WCM models have a pivoting tweeter, so the treble can be aimed towards the seating rather than straight down.
Wharfedale in-wall and in-ceiling speakers compared
| Model | Type | Drivers | Frequency response (±3 dB) | Sensitivity | Recommended amplifier | Cutout / depth |
|---|---|---|---|---|---|---|
| WWS-65 | In-wall | 6.5" woofer, 1" titanium dome | 63 Hz to 20 kHz | 88 dB | 20 to 120 W | 191 × 278 mm, 99 mm deep |
| WWS-80 | In-wall | 8" woofer, 1" titanium dome | 43 Hz to 20 kHz | 89 dB | 40 to 100 W | See product page |
| WCM-65 | In-ceiling | 6.5" woofer, 1" pivoting titanium dome | 65 Hz to 20 kHz | 87 dB | 20 to 120 W | See product page |
| WCM-80 | In-ceiling | 8" woofer, 1" pivoting titanium dome | 45 Hz to 20 kHz | 88 dB | 30 to 140 W | 243 mm round, 107 mm deep |
All four are 8 ohm, 2-way passive speakers. Choose the 8-inch models for larger rooms or when you want more bass; the 6.5-inch models suit smaller rooms, surrounds and tighter spaces.
Planning the installation
- Fit them early. Running cable and cutting holes is far easier before plastering or while the ceiling is open during a renovation.
- Check the cavity. Confirm the mounting depth fits between the plasterboard and whatever is behind it, and keep clear of studs, joists, pipes, wiring, downlights and air-conditioning ducts.
- Think about back boxes. An enclosed back box behind the speaker gives more consistent bass from room to room and cuts the sound that travels into the space next door or upstairs.
- Plan the amplifier. These are passive speakers. An AV receiver drives them in a home cinema; for music around the house, use a multi-zone or streaming amplifier so each room has its own volume.
- Use an installer for ceilings. If you are not confident working in the roof space, have a qualified installer or electrician fit them, especially near existing lighting and wiring.
Frequently asked questions
Are in-wall speakers better than in-ceiling speakers?
For the front of a home cinema or for stereo music, yes, because they face you at ear height. For even background music across a room, in-ceiling speakers are better.
Can I use in-ceiling speakers for a home cinema?
Yes, as surround or height channels. For the front left, centre and right, in-wall or freestanding speakers give clearer dialogue and a more precise picture of where sounds come from.
How many in-ceiling speakers do I need?
A pair covers most kitchens and living areas. Large or L-shaped open-plan spaces may need two pairs, each on its own amplifier zone.
Do in-wall speakers need a back box?
They work without one, but a back box gives more consistent bass and reduces sound leaking into the next room. It is worth it in bedrooms, apartments and media rooms.
Do in-wall and in-ceiling speakers need an amplifier?
Yes. The WWS and WCM ranges are passive speakers and need an AV receiver or amplifier. Our guide to matching speakers to an amplifier explains what to look for.
Can I use in-ceiling speakers outside on a covered patio?

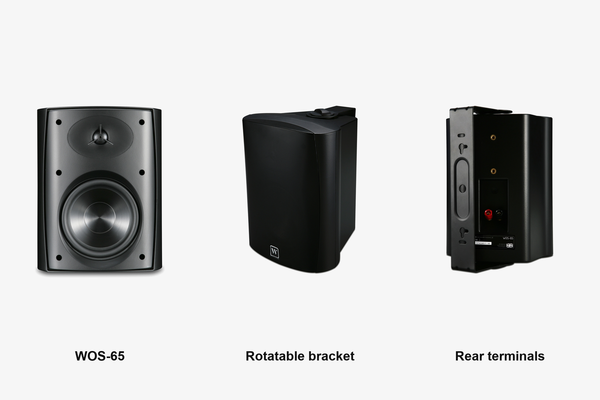

Use outdoor-rated speakers anywhere exposed to weather or high humidity. See our outdoor speakers guide.
Planning a build or renovation? Contact us and we can help with the layout, or browse the full architectural range.
